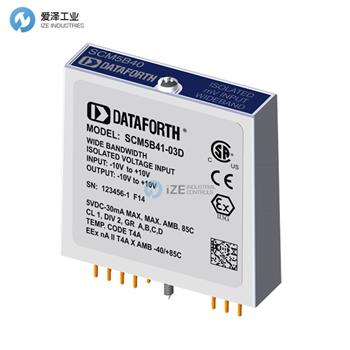

DATAFORTH模塊SCM5B41-03D技術參數
Specifications | |
Input Range | -10 to +10 V |
Output Range | -10 to +10 V |
Bandwidth | 10 kHz |
Mechanical Format | Modular plug-in-board |
Isolation Voltage | 1500 Vrms |
Isolation Type | Transformer 3-way |
Accuracy | ±0.03% Span |
Supply Voltage | +5VDC ±5% |
Input Voltage Withstand | 240 Vrms |
Gain/Offset Adjust | N/A |
NMR (60 Hz) Rejection | 120dB per Decade above 10kHz |
External I-to-V Resistor | N/A |
Output Control | Enable/Disable |
Output Resistance | 50 Ohms |
Dimensions | 2.28 x 2.26 x 0.60 inches |
Interface | 14 pin |
Customization | yes |
Weight | 62 grams (2.19 ounces) |
DATAFORTH模塊SCM5B40系列產品介紹
Description
Each SCM5B40 and SCM5B41 wide bandwidth voltage input module provides a single channel of analog input which is amplified, isolated, and converted to a high-level analog voltage output. This voltage output is logic-switch controlled, allowing these modules to share a common analog bus without the requirement of external multiplexers.
The SCM5B modules are designed with a completely isolated computer side circuit which can be floated to ±50V from Power Common, pin 16. This complete isolation means that no connection is required between I/O Common and Power Common for proper operation of the output switch. If desired, the output switch can be turned on continuously by simply connecting pin 22, the Read-Enable pin, to I/O Common, pin 19.
The input signal is processed through a pre-amplifier on the field side of the isolation barrier. This pre-amplifier has a gain-bandwidth product of 5MHz and is bandwidth limited to 10kHz. After amplification, the input signal is chopped by a proprietary chopper circuit. Isolation is provided by transformer coupling, again using a proprietary technique to suppress transmission of common mode spikes or surges. The module is powered from +5VDC, ±5%.
A special input circuit on the SCM5B40 and SCM5B41 modules provides protection against accidental connection of power-line voltages up to 240VAC.
描述
每個SCM5B40和SCM5B41寬帶寬電壓輸入模塊提供單通道模擬輸入，該模擬輸入被放大、隔離并轉換為高電平模擬電壓輸出。 該電壓輸出由邏輯開關控制，允許這些模塊共享公共模擬總線，而無需外部多路復用器。
SCM5B模塊設計有一個完全隔離的計算機側電路，可以從電源公共端浮動到 ±50V，引腳16。這種完全隔離意味著I/O公共端和電源公共端之間不需要連接，輸出開關的正常運行 . 如果需要，只需將引腳22（讀取啟用引腳）連接到I/O公共端引腳19，即可連續打開輸出開關。
輸入信號通過隔離柵現場側的前置放大器進行處理。該前置放大器的增益帶寬積為5MHz，帶寬限制為10kHz。放大后，輸入信號被專有的斬波電路斬波。隔離由變壓器耦合提供，同樣使用專有技術來抑制共模尖峰或浪涌的傳輸。該模塊由 +5VDC 供電，±5%。
SCM5B40和SCM5B41模塊上的特殊輸入電路可防止意外連接高達240VAC的電源線電壓。
