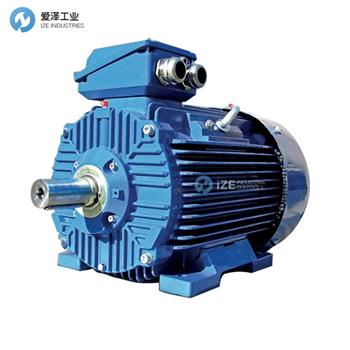

CANTONI電機3SIEL90L2技術參數
ELECTRICAL PARAMETERS | |
Rated voltage [V] | 400/690 |
Breakdown torque ratio [-] | 4 |
Winding connection | ?/Y |
Starting current ratio [-] | 8 |
Frequency [Hz] | 50 |
Efficiency at 1/4 of full load [%] | - |
Rated output [kW] | 2.2 |
Efficiency at 2/4 of full load [%] | 85.4 |
Rated output [HP] | 3 |
Efficiency at 3/4 of full load [%] | 86.5 |
Service factor [-] | 1 |
Efficiency at rated (full) load [%] | 85.9 |
Duty | S1 |
Efficiency at 5/4 of full load [%] | - |
Rated current [A] | 4.3/2.5 |
Power factor at 1/4 of full load [-] | - |
Synchronous speed [rpm] | 3000 |
Power factor at 2/4 of full load [-] | 0.67 |
Rated speed [rpm] | 2910 |
Power factor at 3/4 of full load [-] | 0.8 |
Rated torque [Nm] | 7.2 |
Power factor at rated (full) load [-] | 0.86 |
Starting torque ratio [-] | 2.7 |
Power factor at 5/4 of full load [-] | - |
GENERAL DATA | |
Efficiency class | IE3 |
Sound pressure level [dB] | 63 |
Frame size | 90 |
Sound power level [dB] | 75 |
Number of poles | 2 |
Terminal box position | top |
Starting method | DOL or Y/? |
Possibility of terminal box rotation | yes |
Insulation class | F |
Bearing on D-side | 62052Z |
Frequency converter supply | yes |
Bearing on ND-side | 62052Z |
Mounting arrangement | IMB3/B5/B35/B14 |
Bearings regreasing | no |
Cooling method | IC411 |
Housing - material | aluminium |
Weight (IMB3) [kg] | 18.5 |
Feet - material | aluminium |
Moment of inertia [kgm2] | 0.0019 |
Bearing shields - material | aluminium |
Direction of rotation | CW/CCW |
Painting | RAL5010 |
Degree of protection | IP55 |
Climatic execution | N |
ENVIRONMENTAL CONDITIONS | |
Ambient temperature [°C] | up to +40 |
Altitude above sea level [m] | up to 1000 |
Relative humidity [%] | up to 95 |
CANTONI電機3SIE系列其他常用型號：
CANTONI 3SIEK100L-2,6
CANTONI 3SIEK100L-4A,4B
CANTONI 3SIEK112M-2,6
CANTONI 3SIEK112M-4
CANTONI 3SIEK132S
CANTONI 3SIEK132M
CANTONI 3SIEK160M
CANTONI 3SIEK160L
CANTONI 3SIEK180M-2,4
CANTONI 3SIEK180L-4,6
CANTONI 3SIEL90L2
CANTONI motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CANTONI電機3SIEL90L2的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for CANTONI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
