DOMEL風機790系列產品參數
 | |||||||||||||||||
Code | P/E | Stage | A | B | C | D | P1 | U | Sealed Vacuum | Max air flow | Mass | ||||||
[mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [W] | ［V] | [kPa] | [inH20] | [l/s] | [CFM] | ［kg] | |||
790.3.210-xxx | 1E | 1 | 198 | 7,80 | 82.5 | 3,25 | 30,5 | 1,20 | 52 | 2,05 | 1800 | VARIOUS | 16,9 | 67,9 | 115 | 243,8 | 4,4 |
790.3.220-xxx | 2E | 2 | 229 | 9,02 | 113.5 | 4,47 | 61,5 | 2,42 | 52 | 2,05 | 1800 | VARIOUS | 22,8 | 91,6 | 100 | 212 | 4,9 |
790.3.310-xxx | 1P | 1 | 198 | 7,80 | 82.5 | 3,25 | 30,5 | 1,20 | 63.5 | 2,50 | 1800 | VARIOUS | 16,4 | 65,9 | 115 | 243,8 | 4,4 |
790.3.320-xxx | 2P | 2 | 229 | 9,02 | 113.5 | 4,47 | 61,5 | 2,42 | 63.5 | 2,50 | 1800 | VARIOUS | 22,4 | 90,0 | 100 | 212 | 4,9 |
DOMEL風機790系列產品介紹

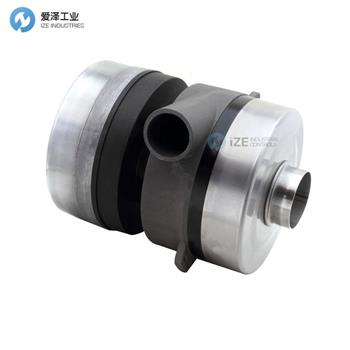

183 mm (7,2”) - 1800 W Tangential Blower (230, 120 or 400 VAC), 2 STAGES
Brushless blower from these series have 183mm diameter and are the most powerful in our product range. They are reaching power up to 1.8 kW and they there are two options with 63.5mm (2.5”) and 50mm (2 outlet). These blowers are designed for applications where relatively high pressure and high flow are needed. These blowers are available up to 1800W. We also have solutions with special sealing which protects bearing available. Such a solution is intended to use the blower for pressure applications. Special sealing solution is available up on request. Very important feature of these blowers is also 3-phase supply (400 VAC). Additional features of these blowers are also 3-phase commutation, precise regulation and high efficiency.
183毫米（7.2英寸）-1800瓦切向鼓風機（230、120或400 VAC），2級
這些系列的無刷鼓風機的直徑為183mm，是產品系列中功能最強大的。它們的功率高達1.8 kW，并且有63.5mm（2.5“）和50mm（2個出口）兩種選擇。這些鼓風機設計用于需要相對高壓力和高流量的應用。這些鼓風機的可用功率高達1800W。還提供帶有特殊密封的解決方案，以保護可用的軸承。這種解決方案旨在將鼓風機用于壓力應用?？筛鶕?jù)要求提供特殊的密封解決方案。這些鼓風機的非常重要的特點還在于三相電源（400 VAC）。這些鼓風機的其他特點還包括三相換相，精確調節和高效率。
DOMEL風機790系列其他常見型號：
DOMEL 790.3.210-xxx
DOMEL 790.3.220-xxx
DOMEL 790.3.310-xxx
DOMEL 790.3.320-xxx
DOMEL 790.3.320-200
DOMEL Brushless DC motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DOMEL風機790.3.320-200的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DOMEL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
DOMEL風機790.3.320-200產品參數
