LEESON直流電機C42D17FK3C 098003.00規格描述
General Specifications | |
Model | C42D17FK3C |
Catalog No | 098003.00 |
Part Description | 1/4HP.1750RPM.MSS56C.TEFC.180V.CONT.40C.1.0SF.RIGID C.DC NEMA.C42D17FK3C |
Category | SCR |
Stock | No |
Nameplate Specifications | |
Output HP | 0.25 |
HPOutput KW | 0.19 kW |
Voltage | 180 V |
Current | 1.4 A |
Speed | 1750 RPM |
Service Factor | 1 |
Efficiency | 77.1 % |
Duty | Continuous |
Insulation Class | F |
Frame | SS56C |
Enclosure | Totally Enclosed Fan Cooled |
Overload Protector | No |
Ambient Temperature | 40 °C |
Drive End Bearing Size | 6203 |
Opp Drive End Bearing Size | 6203 |
UL | Recognized |
CSA | Y |
CE | Y |
Technical Specifications | |
Rotation | Reversible |
Mounting | Rigid C base |
Overall Length | 11.31 in |
Frame Length | 7.00 in |
Shaft Diameter | 0.625 in |
Shaft Extension | 2.06 in |
UPC | 691720000946 |
Weight | 25.00 LB |
LEESON直流電機C42D17FK3C 098003.00產品介紹
刷架設計可輕松接觸刷子
大型超大刷子確保刷子使用壽命長
可拆卸螺栓固定底座; NEMA C面向設計
115或230伏輸入額定功率 - 90/180伏輸出; 能夠動態制動
PWM或SCR型控制器額定; 高啟動扭矩
永久潤滑的密封軸承
LEESON SCR控制器可用于動力馬達; 高啟動扭矩
使用PWM型DC控制可實現更高的HP和速度
UL和CSA上市; 符合NEMA MG1標準
動態平衡的電樞; 30：1恒轉矩操作
Brush holder design provides easy access to brushes
Large oversized brushes assure long brush life
Removable bolt-on base; NEMA C face designs
115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
PWM or SCR type controller rated; High starting torque
Permanently lubricated sealed bearings
LEESON SCR controls available to power motors; High starting torque
Higher HP and speed achievable using PWM type DC controls
UL and CSA Listed; Meets NEMA MG1 standards
Dynamically balanced armatures; 30:1 constant torque operation

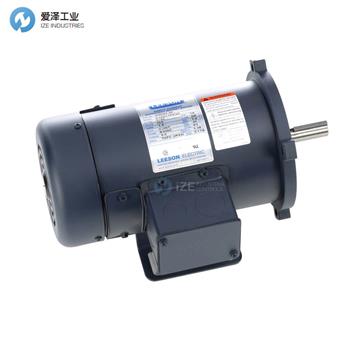

LEESON直流電機C42D17FK3C 098003.00
