MAGNALOY聯軸器S182系列參數
XAK | XAJ2 | XBF2 | XAJ4 | XBF4 | XBD | BD | XT | TD | MOUNT NO. | ||
USA4F17 | 4 Bolt | 1.782 | 2.84 | 5/16-18 | 6.00 | 11.50 | 10.25 | 9.125 | S182 - - 4FV | ||
SAE AA | 2 Bolt | 2.001 | 3.25 | 3/8-16 | 6.00 | 11.50 | 10.25 | 9.125 | S182 - - 2AAV | ||
SAE A | 2(4) Bolt | 3.251 | 4.19 | 3/8-16 | 4.12 | 3/8-16 | 6.00 | 11.50 | 10.25 | 9.125 | S182 - - 2AV |
SAE B | 2(4) Bolt | 4.001 | 5.75 | 1/2-13 | 5.00 | 1/2-13 | 7.00 | 11.50 | 10.25 | 9.125 | S182 - - 2BV |
SAE C | 2(4) Bolt | 5.001 | 7.12 | 5/8-11 | 6.38 | 1/2-13 | 8.25 | 11.50 | 10.25 | 9.125 | S182 - - 2CV |
SAE D | 2(4) Bolt | 6.001 | 9 | 3/4-10 | 9.00 | 3/4-10 | 10.50 | 13.50 | 11.81 | 11.00 | S182 - - 2DV |
63 A2/B4 | 2(4) Bolt | 63.01mm | 100mm | 3/8-16 | 85mm | 5/16-18 | 6.00 | 11.50 | 10.25 | 9.125 | S182 - - 63MV |
63 S4 | 4 Bolt | 63.01mm | 80mm | 11/32 | 6.00 | 11.50 | 10.25 | 9.125 | S182 - - 63MSV | ||
80 A2/B4 | 2(4) Bolt | 80.01mm | 109mm | 3/8-16 | 103mm | 5/16-18 | 6.00 | 11.50 | 10.25 | 9.125 | S182 - - 80MV |
80 S4 | 4 Bolt | 80.01mm | 100mm | 5/16-18 | 6.00 | 11.50 | 10.25 | 9.125 | S182 - - 80MSV | ||
100 A2/B4 | 2(4) Bolt | 100.01mm | 140mm | 1/2-13 | 125mm | 3/8-16 | 7.00 | 11.50 | 10.25 | 9.125 | S182 - - 100MV |
125 A2/B4 | 2(4) Bolt | 125.01mm | 180mm | 5/8-11 | 160mm | 1/2-13 | 8.25 | 11.50 | 10.25 | 9.125 | S182 - - 125MV |
160 A2/B4 | 2(4) Bolt | 160.01mm | 224mm | 3/4-10 | 200mm | 5/8-11 | 10.50 | 13.50 | 12.25 | 11.00 | S182 - - 160MV |
180 A2/B4 | 2(4) Bolt | 180.01mm | 250mm | 3/4-10 | 224mm | 5/8-11 | 11.25 | 15.00 | 13.00 | 11.75 | S182 - - 180MV |
MAGNALOY聯軸器S18252160M介紹

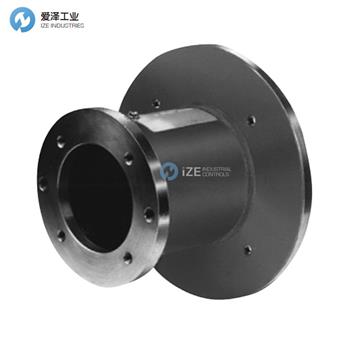

MAGNALOY’S WELDED STEEL MOUNTS are available for special mounting requirements where the standard aluminum mount is not available or where a steel mount is required. These mounts are manufactured with the same quality and precision of the standard aluminum mounts and are guaranteed to meet Magnaloy’s minimum quality measurements. Magnaloy’s Welded Steel Mounts are available for horizontal, vertical and engine applications in a nearly limitless choice of lengths in 1/4 inch increments. MOUNTING KITS are included as with aluminum mounts.
MAGNALOY的焊接鋼安裝座可用于特殊的安裝要求，而無法使用標準的鋁制安裝座或需要鋼制安裝座。這些安裝座具有與標準鋁制安裝座相同的質量和精度，并保證滿足Magnaloy的最低質量測量。Magnaloy的焊接鋼制安裝座幾乎可以無限地用于水平，垂直和發動機應用中長度以1/4英寸為增量。安裝套件與鋁制安裝座一起提供。
MAGNALOY聯軸器S182系列其他常見型號：
MAGNALOY S18252160M
MAGNALOY S182--4FV
MAGNALOY S182--2AAV
MAGNALOY S182--2AV
MAGNALOY S182--2BV
MAGNALOY S182--2CV
MAGNALOY S182--2DV
MAGNALOY S182--63M
MAGNALOY S182--63MS
MAGNALOY S182--80M
MAGNALOY S182--80MS
MAGNALOY S182--100M
MAGNALOY S182--125M
MAGNALOY S182--160M
MAGNALOY S182--180M
MAGNALOY Coupling NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAGNALOY聯軸器S18252160M的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for MAGNALOY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
MAGNALOY聯軸器S18252160M描述說明
