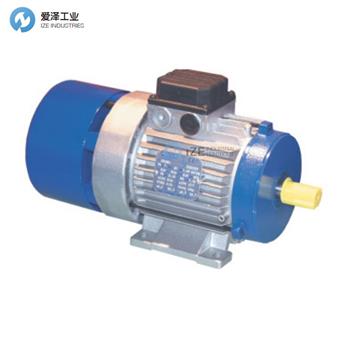

COEL電機F100LB4 SE產品參數
Specification | |
kW | 3.00 |
r.p.m. | 1410 |
Cos ? | 0.82 |
l n V.400 | 6.4 |
Ma/Mn | 2.7 |
I.A/I.N | 5.0 |
Inertia moment Jx Kgm2 | 0.00612 |
Braking Torque MAX Nm. | 48 |
Starts C/h | 7000 |
A.V.400 Brake A.C. (m A) | 250 |
A. V.230AC Brake D.C. (m A) | 250 |
KG | 32 |
COEL電機F100LB4 SE產品介紹
COEL電機是封閉的，外部通風。制動總成和所有電機部件均由Coel制造。
制動總成與ì3ph.AC?電磁閥串聯供應，但也可根據要求提供直流版本。
F系列電機可由變頻器驅動，但在這種情況下，必須將制動電源與其中一個電機分開。
電機外殼為71至160機架的壓鑄鋁，180和200機架為鑄鐵。
框架71至160的軸背面裝有六角體，用于手動旋轉軸。
可使用隨電機提供的專用螺釘手動釋放制動器。摩擦痕跡為鑄鐵，自動通風。F系列電機設計用于非常重的工作循環。
特征：
-盤式制動器沒有軸的軸向滑動。
-在非常大的值內調整制動扭矩。
-標準三相電磁鐵
-F電機配有用于手動松開制動器的螺釘、用于調整制動器總成磁隙的測厚儀以及用于手動旋轉的軸后端六角體。
Coel motors are closed and externally ventilated. The brake groups and all the motor parts are made by Coel.
The brake group is supplied on series with ì3ph. AC? electromagnet but DC version is also available on request.
The F series motors can be driven by inverter but in this case the brake supply must be separated from the one of the motor.
The cases of motors are in die cast pressed aluminium from 71 to 160 frame and in cast iron for frames 180 and 200.
The shafts of frames 71 to 160 are fitted with an hexagon on the back side for the manual rotation of the shaft.
The brake can be manually released with a special screw supplied with the motor. The friction tracks are in cast iron and auto ventilated. The F series motors are designed for very heavy duty cycles.
Features
- Disk brake without axial sliding of the shaft.
- Adjustment of braking torque within very large values.
- Three phase electromagnet as standard
- F motors are supplied with screw for the manual release of the brake, thickness gauge for the adjustment of the magnetic gap of the brake group and hexagon on the rear end of the shafts, for its manual rotation.
COEL電機F100LB4 SE其他常見型號：
COEL F71A4
COEL F71B4
COEL F71C4
COEL F80A4
COEL F80B4
COEL F80C4
COEL F90SA4
COEL F90LA4
COEL F90LB4
COEL F90LC4
COEL F100LA4
COEL F100LB4
