RULAND切縫聯軸器FCR20-6-6-A技術參數
Dimensions | |
Bore (B1 | 0.3750 in |
B1 Max Shaft Penetratio | 0.842 in |
Outer Diameter (OD) | 1.250 in (31.8 mm) |
Length (L) | 1.750 in (44.5 mm) |
Recommended Shaft Toleranc | +0.0000 in / -0.0005 in |
Small Bore (B2 | 0.3750 in |
B2 Max Shaft Penetratio | 0.842 in |
Bore Toleranc | +0.001 in / -0.000 in |
Clearance Diameter (C) MA | 1.459 in |
Fastening Hardware | |
Cap Scre | M5 |
Hex Wrench Siz | 4.0 mm |
Seating Torqu | 9.5 Nm |
Screw Material | Alloy Steel with Nypatch? |
Screw Finis | Black Oxide |
Number of Screws | 2 ea |
Performance Specifications | |
Dynamic Torque Reversin | 15.25 lb-in |
Dynamic Torque Non-Reversin | 30.5 lb-in |
Static Torqu | 61 lb-in |
Torsional Stiffnes | 0.048 Deg/lb-in |
Maximum Speed | 6,000 RPM |
Nypatch廬 Anti-Vibration Hardware | Yes |
Balanced Desig | Yes |
Angular Misalignmen | 3.0° |
Parallel Misalignmen | 0.015 in |
Axial Motio | 0.010 in |
Moment of Inertia | 0.0401 lb-in2 |
Full Bearing Support Required | Yes |
Zero-Backlash | Yes |
RULAND切縫聯軸器FCR20-6-6-A產品介紹

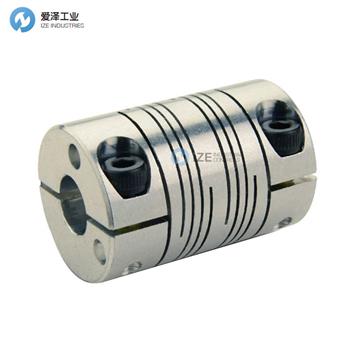

Ruland FCR20-6-6-A 是一種夾緊式六梁聯軸器，具有0.3750" x 0.3750"的孔徑，外徑為1.250"，長度為1.750"。它由單塊材料加工而成，具有兩組三條螺旋切口。與單梁或四梁聯軸器相比，這種設計提供了更高的扭矩容量、更低的扭轉變形和更大的體積，適用于輕型動力傳動應用，如將伺服電機與絲杠連接。FCR20-6-6-A 具有零背隙和平衡設計，從而在高達6,000 RPM的高速下減少振動。Ruland 提供的這種螺旋聯軸器配有 Nypatch? 防振硬件，確保螺釘?shù)木鶆蚓臀?、可重?fù)的螺釘安裝，防止咬合，并保持高抓緊力。所有硬件均為公制，超過 DIN 912 12.9 標準的最大扭矩能力。FCR20-6-6-A 采用 7075 鋁合金制造，重量輕，慣性低。其材料從北美的工廠獨家采購，并符合 RoHS3 和 REACH 標準。FCR20-6-6-A在馬薩諸塞州馬爾伯勒的工廠中。
Ruland FCR20-6-6-A is a clamp style six beam coupling with 0.3750" x 0.3750" bores, 1.250" OD, and 1.750" length. It is machined from a single piece of material and features two sets of three spiral cuts. This gives it higher torque capacity, lower windup, and larger body sizes than single or four beam couplings and allows for use in light duty power transmission applications such as coupling a servo motor to a lead screw. FCR20-6-6-A is zero-backlash and has a balanced design for reduced vibration at high speeds of up to 6,000 RPM. Ruland supplies this spiral coupling with Nypatch? anti-vibration hardware that allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power. All hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. FCR20-6-6-A is made from 7075 aluminum for lightweight and low inertia. It is machined from bar stock that is sourced exclusively from North American mills and RoHS3 and REACH compliant. FCR20-6-6-A is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.
