RADICON減速機M系列技術參數
Product Options | |
Unit Sizes: | 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 13, 14 & 16 |
Input Power: | Up to 160 kW (215 HP) |
Output Torque: | Up to 20,000Nm (177,000 lb.in) |
Gear Ratios: | 1.4 to 70:1 double reduction, up to 250:1 triple reduction 16,200:1 in combined units |
Motor Sizes: | IEC Frames from 63 to 280; NEMA Frames from 56 to 405 |
RADICON減速機M系列介紹
M系列螺旋直列齒輪減速電機和減速器提供了非常高效且緊湊的驅動解決方案，以滿足您的要求。
M系列齒輪減速電機系列可滿足大多數驅動要求，最大功率可達160KW，最大輸出扭矩為20000 Nm。
它利用了多年積累的設計專業知識以及高質量材料和組件的開發優勢。
最終結果是一系列減速和減速電機，這些電機提供了高承載能力，高效率，安靜運行和可靠性。
可以法蘭或腳安裝方式提供為雙，三，四和五級減速單元。可提供電動，電動機就緒（接受客戶自己的IEC / NEMA電動機）或帶有鍵控輸入軸的減速器。
所有齒輪箱均為鑄鐵。

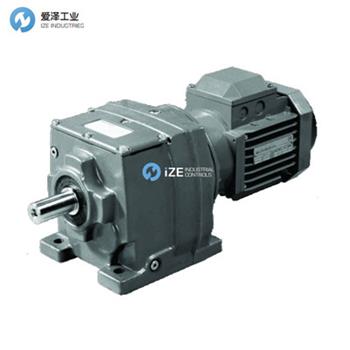

Series M helical inline geared motors and reducers provide a very efficient and compact drive solution to meet your requirements.
The Series M geared motor range meets most drive requirements up to 160KW with a maximum output torque of 20000 Nm.
It takes advantage of being developed from many years of accumulated design expertise, together with the use of high quality materials and components.
The end result is a series of speed reducing and geared motors offering high load carrying capacity, high efficiency, quiet running and reliability.
Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.

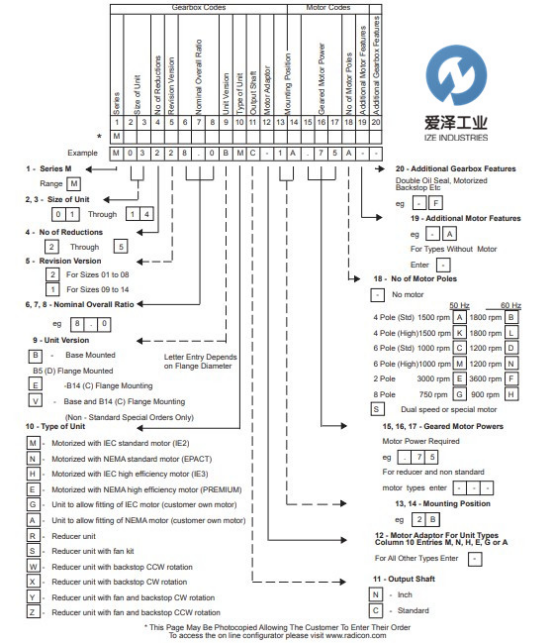

RADICON減速機M系列選型
RADICON減速機M系列其他常用型號：
RADICON M02225.0BGCC1D1.5A
RADICON M02225.0BGCC1
RADICON M01225.0BGCC1D15A
RADICON M02225.OBMCC1D1.5A
RADICON Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RADICON減速機M02225.0BGCC1D1.5A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DEUBLIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
RADICON減速機M系列M02225.0BGCC1D1.5A選型介紹
