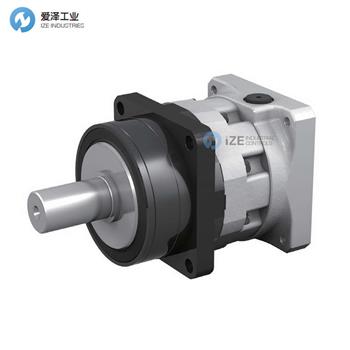

SUMITOMO ELECTRIC減速機IB系列技術參數
Standard Specification | |
Backlash | Initial backlash setting is 3 or 15-minute. |
Efficiency | 90% or more at rated output torque (with reduction ratio 3.7, 5, 9) |
Noise Level | 70dB(A) 0.5m *Varies depending on models and mounting condition. |
Lubrication system | Grease lubrication The unit is filled with grease at the time of shipping. |
Reduction system | Planetary gear mechanism |
Output shaft rotation direction | Same direction as the rotation direction of input gear. |
Material | Case with internal gear and gear: Chrome-Molybdenum Steel |
Mounting location | Indoor (without dust and water) |
Ambient temperature | 0–40°C |
Ambient humidity | 85% or less. There should be no condensation. |
Altitude | 1000 m or below |
Ambient atmosphere | There should be no corrosive gases, explosive gases, vapor, or dust. |
Mounting angle | All angles possible (no limitation) |
Paint | Black oxide coating for housing with internal gear |
Actual reduction ratio | The actual reduction ratio is 3/11 for 3.7. For others are integer reduction ratios. |
Surface temperature of the reducer | 80°C or below. |
SUMITOMO ELECTRIC減速機IB系列介紹
緊湊性
內嵌齒輪的殼體使其緊湊且高剛性。
高精度和高剛性
大直徑精密角接觸球軸承支撐輸出軸，可在緊湊的殼體中承受較大的徑向載荷。
與主要伺服電機制造商兼容
電機適配器與主要伺服電機制造商的主電機相對應。
組裝簡單
組裝簡單。交貨后，用螺栓（客戶提供）直接連接伺服電機和減速器。用六角扳手擰緊電機軸。可立即使用。
輸出軸變體
提供三種變體以滿足客戶需求。
Compactness
The casing with internal gears makes it compact and highly rigid.
High Precision and High Rigidity
Large diameter precision angular ball bearing, supporting output shaft, allows large radial load with compact casing.
Compatible with Major Servo Motor Manufacturers
The motor adapter corresponds to the main motor of major servo motor manufacturers.
Simple Assembly
Simple assembly. Directly connect servo motor and reducer with bolt (provided by customer) after delivery. Tighten motor shaft with hexagon wrench. Ready for immediate use.
Output Shaft Variation
Three variations available to match customers' needs.
SUMITOMO ELECTRIC減速機IB系列其他常用型號：
SUMITOMO ELECTRIC ANFX-P120F-7V-L3-5
SUMITOMO ELECTRIC ANFX-P120F-7RLD-15
SUMITOMO ELECTRIC ANFX-P120W-1GLD-21
SUMITOMO ELECTRIC ANFX-P110N-2DL3-45
SUMITOMO ELECTRIC ANFX-P110F-2DLD-81
