BAUMULLER電機GDM系列技術參數
Size | IM B14 |
Degree of protection | IP44 |
Connection | Main/encoder connection |
Cooling type | IC 410 |
Temperature rise | ?9 = 105 K |
Ambient temperature | In operation: Class 3K3/3Z12 acc. to DIN EN 60721-3-3:1995, but: Temperature range |
Surface | unvarnished |
Bearing | A-side |
Bearing service life | L10H 20.000 h |
Balance quality | A: DIN EN60034-14 (VDE 0530-part14):2004-09 |
Concentricity | N; R |
Vibration-resistant to | radial 3 g |
Shaft end | cylindrical |
Holding brake | Spring-operated brake |
Actual speed value encoder | Tacho generator |
Certifications | CE |

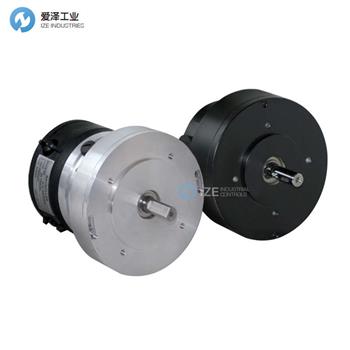

BAUMULLER電機GDM系列介紹
Baumüller 直流盤式電機是永磁電機，具有無鐵心轉子和鼓形換向器，因此具有低慣性和高動態運行特性。它們易于在整個速度范圍內控制，即使在低于每分鐘一轉的極低速度下也能保持精確的同心度。
這些電機首先具有節省空間的淺型設計。在最短的結構類型中，軸向僅需 39.5 毫米的安裝空間。就安裝空間與可實現的發動機功率的關系而言，GDM 12 N 電機是較薄、較緊湊的盤式電機。
? 由于采用堅固的線圈和鼓形換向器，因此具有高過載能力
? 通過 NdFeB 永磁體實現高扭矩
? 小型裝置具有極短的設計，性能卓越
? 由于過載能力強，因此動態性能高
? 由于集電極疊片，因此扭矩波動非常小
? 由于電樞電感，因此碳刷磨損非常小
? 由于無芯轉子，因此無定位裝置
? 在很寬的速度范圍內幾乎保持恒定的扭矩
? 易于控制
? 可選配制動器、轉速表、編碼器、傳動裝置
Baumüller DC disc motors are permanent-magnet motors with coreless rotors and drum-shaped commutators, giving them low-inertia and highly dynamic running characteristics. They are easy to control over their entire speed range and maintain exact concentricity, even at very low speeds below one revolution per minute.
These motors are characterized first and foremost by their space-saving, shallow design. In their shortest construction type, only 39.5 mm of installation space is required in the axial direction. In terms of the installation space in relation to the achievable engine power, the GDM 12 N motor is the slimmest and most compact disc motor in the world.
? High overload capacity thanks to robust wire wrap with drum-shaped commutator
? High torque via NdFeB permanent magnets
? High performance in a small unit with an extremely short design
? High dynamics due to high overload capacity
? Very low torque ripple due to collector lamellation
? Very low carbon brush wear due to armature inductance
? Detent-free due to coreless rotor
? Virtually constant torque across a wide speed range
? Easily controllable
? Optionally available with brake, tachometer, encoder, gearing
BAUMULLER電機GDM系列其他常用型號：
BAUMULLER GDM120N-54U2102 528/0750
BAUMULLER GDM120N-44U2102-0528/0750
BAUMULLER GDM120N-54U3005 0726/0710
BAUMULLER GDM1-075F1
BAUMULLER GDM1-080F1
BAUMULLER GDM1-80N1
BAUMULLER GDM1-009F1
BAUMULLER GDM1-010N1
BAUMULLER GDM1-100N2
BAUMULLER GDM1-012N1
BAUMULLER GDM1-120N2
BAUMULLER MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BAUMULLER電機GDM120N-54U2102 528/0750的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BAUMULLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
BAUMULLER電機GDM系列GDM120N-54U2102 528/0750技術參數及介紹
