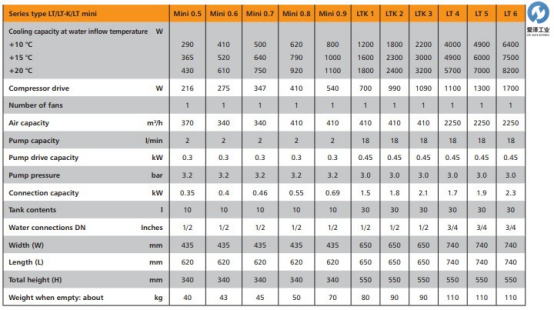

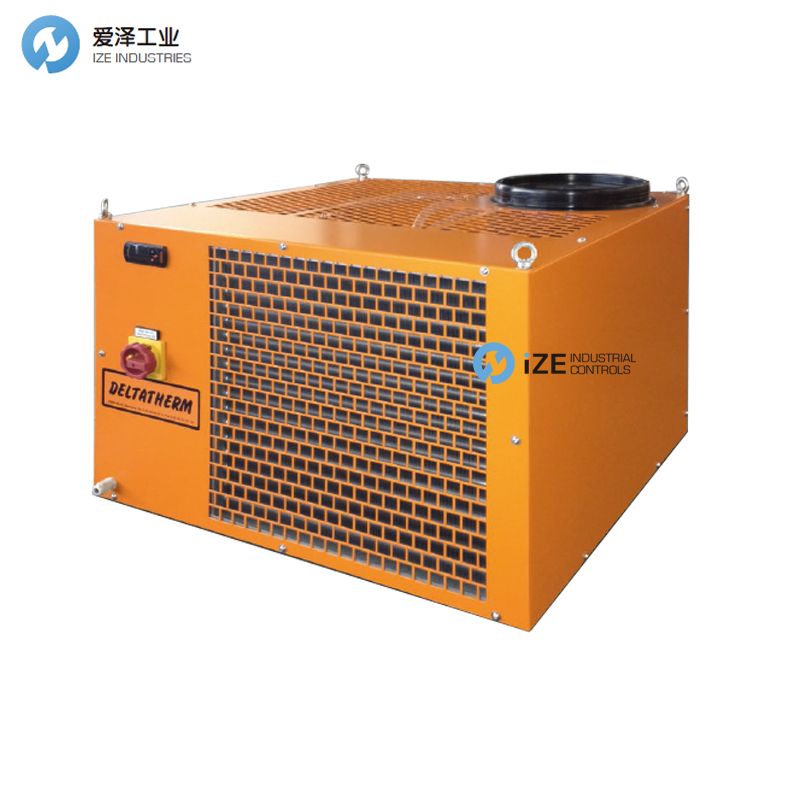

德國DELTATHERM冷卻單元LT系列 示例LT5產品參數及選型表
Short specification of the standard equipment
? Compact device tested by us in-house, in test run lasting several hours
? Compact industrial housing for indoor installation
? Painted in RAL 2000
? Air-cooled condenser with copper pipes and aluminiumlamellae,extremely efficient
? Axial fan, extremely low-noise and maintenance-free,with contact protection
? CFC-free coolant
? Hermetic compressor, 100% suction gas-cooled
? Evaporator as a plate heat exchanger or pipe coil heat exchanger
? Thermostatic expansion valve for optimum coolant injection
? High and low-pressure pressure switch
? Water circuit with tank, pump, pump bypass valve
? Water filling via tank
? Water circuit piping made from stainless material(iron-free)
? Water tank made from plastic, heat-insulated
? Pumps made from bronze or stainless steel
? Digital controller with target and actual value display
? Switching and control elements completely wired
? Automatic power adjustment
? CE-compliant
? Refrigeration technology designed according to DIN EN378, part 2
? Electronics designed according to DIN EN 60204
? RoHS and REACH-compliant
DELTATHERM冷卻單元LT系列 標準設備的規格概述
結構緊湊并由內部進行測試，持續幾個小時的測試用于室內
緊湊型安裝的工業外殼
RAL2000色號噴涂
帶銅管和鋁片的風冷式冷凝器，效率相當高
軸流風機，極低噪音和免維護，及接觸保護
不含CFC的冷卻液
密封式壓縮機，100％吸氣冷卻
蒸發器作為板式換熱器或管式換熱器
恒溫膨脹閥可實現最佳的冷卻液注入
配置高低壓壓力開關
帶水箱，水泵，水泵旁通閥的水回路，通過水箱注水
水循環管道由不銹鋼材料制成（無鐵）
水箱由塑料制成，隔熱由青銅或不銹鋼制成的泵
具有目標和實際值顯示的數字控制器
開關和控制元件完全接線，自動功率調整
CE-兼容
制冷技術根據DIN EN標準設計378
電子設計根據DIN EN 60204符合RoHS和REACH標準
Available options
? Outdoor installation
? Air filer mat
? Air filter mat monitoring
? Radial fans
? Split design
? Water-cooled condenser
? Continuously variable speed regulation of the fans
? Low-noise design
? Overflow valve
? Fixed bypass
? Wire marking
? Heavy-duty connector (e.g. Harting)
? Refrigeration gauge for high and low-pressure sides
? Cold fluid outlet temperature < +8 oC
? Flow monitor with analog or digital signal
? Water filter
? Gate valves in flow and return
? Check valves and solenoid valves for the water circuit(consumers higher than coolers)
? Reinforced pump
? External on/off switch
? Tank filling, pressureless, from outside
? Automatic water replenishment
? Water temperatures up to 40 °C
? Tank heating for temperature control
? Pump switch-off
? Water circuit made from stainless steel or PVC for deionised water
? Conductance monitoring
? Multi-circuit system
? Heat recovery
? 24V AC/DC control voltage
? Special voltages and frequencies (50/60 Hz)
? Limit temperature monitoring
? Differential temperature regulation
? External temperature sensor
? Cabinet heating
? Cabinet fan
? Bus connection, e.g. Profibus DP
? Individual fault indicators (in the plain text display or as bit technology)
? RAL special colours upon request
? Temperature stability ± 0.2 K
? Mobile version
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DELTATHERM冷卻單元Mini 0.5
DELTATHERM冷卻單元Mini 0.6
DELTATHERM冷卻單元Mini 0.7
DELTATHERM冷卻單元Mini 0.8
DELTATHERM冷卻單元Mini 0.9
DELTATHERM冷卻單元LTK 1
DELTATHERM冷卻單元LTK 2
DELTATHERM冷卻單元LTK 3
DELTATHERM冷卻單元LT 4
DELTATHERM冷卻單元LT 5
DELTATHERM冷卻單元LT 6
愛澤工業專業提供德國DELTATHERM冷卻單元LT系列 示例LT5全系列產品，冷卻單元，回火系統，加熱系統，柜冷卻，遠程診斷，鈑金加工和管道建設等
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
愛澤工業為用戶提供咨詢、資料上門、輔助選型，售后安裝服務，操作人員免費培訓等服務。
歡迎來電索取樣本資料和產品信息。
如果有任何關于德國DELTATHERM冷卻單元LT系列 示例LT5的疑問，請隨時與我們聯系，愛澤工業（86-021-35350722）。我們將盡全力解決您的問題。
有關德國DELTATHERM冷卻單元LT系列 示例LT5產品更詳細的信息或者購買德國DELTATHERM冷卻單元LT系列 示例LT5相關產品，請聯系愛澤工業。
DELTATHERM冷卻單元LT/LT-K系列標準設備的規格概述
