BRENNENSTUHL電纜卷筒1208930技術參數
Technical data | |
Cable designation: | H07RN-F 3G1,5 |
Cable length: | 40 m |
Cable quality: | Rubber-Neoprene, Rubber-Neoprene |
Capacity in coiled state 230V: | 1000 W |
Capacity in uncoiled state 230V: | 3300 W |
With residual current circuit breaker (RCCB): | No |
Nominal input voltage: | 230 V |
With Bretec: | Yes |
Reel diameter: | 290 mm |
With CABLEPILOT: | Yes |
With carrying handle: | Yes |
Usage: | Trade/ construction sites |
Housing material: | Plastic |
With plug storage: | Yes |
Number of CEE socket outlets: | 0 |
Number of earthed socket outlets: | 3 |
Degree of protection (IP): | IP44 |
Area of use: | Outdoor |
Length: | 19 cm |
Width: | 29 cm |
Height: | 37 cm |
Weight: | 6,80 kg |
BRENNENSTUHL電纜卷筒1208930產品介紹
Garant Bretec IP44 商業/建筑工地電纜卷筒 40m（特殊塑料制成，適合建筑工地使用和永久戶外使用）
? 40m 電纜長度 (H07RN-F 3G1,5) RN 電纜 - 非常堅固、耐油，特別適合專業用途 - 根據 VDE 0100 第 704 部分，批準用于困難的施工條件
? 戶外電纜卷筒具有過熱保護、過熱和過載指示燈以及鍍鋅承載架上的特殊塑料制成的卷筒體
? 創新的提手“cablepilot”確保完美的電纜布線，并防止電纜在上下滾動時打滑 - 在運輸和實用的懸掛過程中允許解放雙手
? 3 個保護觸點插座，防濺，帶自動關閉蓋
? 使用 Bretec 旋轉接觸系統，卷軸旋轉，插座插件不會隨之旋轉 - 這使得即使在連接電器時也可以松開電纜，而不會扭曲電纜

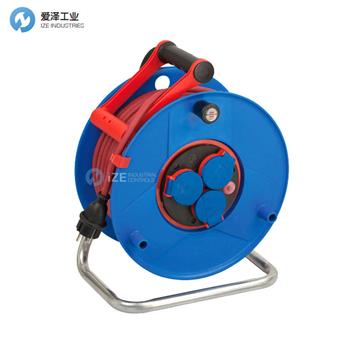

Garant Bretec IP44 commercial/construction site Cable Reel 40m (made of special plastic, for construction site use and permanent outdoor use)
? 40m cable length (H07RN-F 3G1,5) RN cable - very robust, oil-resistant and particularly suitable for professional use - approved for difficult construction conditions according to VDE 0100 part 704
? Outdoor Cable Reel with overheating protection, indicator light in case of overheating and overload and a reel body made of special plastic on a galvanised carrying frame
? Innovative carrying handle "cablepilot" ensures perfect cable routing and prevents the cable from slipping when rolling up and down - allows free hands during transport and practical hanging up
? 3 protective contact sockets, splash-proof, with self-closing lids
? With the Bretec rotary contact system, the reel rotates without the socket insert rotating with it - This allows the cable to be unwound even when electrical appliances are connected, without their cables twisting
