ITALVIBRAS電機VR17500/6-S08-2U技術參數
DESCRIPTION | |
Code | 605055 |
Execution | 2U |
Type | VR 17500/6-S08 |
SIZE | 310 |
SPECIFICATIONS | |
Weights Setting | Max |
Static moment | 35175 kgmm |
Max RPM | 1000 |
Centrifugal force | 39300 kg / 386 kN |
Weight | 450+450 kg |
Drive Motor Rating | 18,5kW |
ITALVIBRAS電機VR系列介紹
VR 旋轉運動激振器具有球墨鑄鐵主體，其中兩個軸承支撐軸，兩端裝有偏心重量，產生規定的離心力。
靜力矩，即離心力，可通過鋼或鉛制成的附加配重塊進行調節。
軸承通過油浴潤滑，必須由最終用戶插入。 典型應用是兩個 VR 激振器通過萬向軸連接在一起，每個 VR 安裝在機器的兩側。
它們有 1U 和 2U 兩種型號，分別有一個接頭和兩個接頭。 具有兩個接頭 (2U) 的激振器軸的旋轉是通過外部驅動器實現的，外部驅動器通過接頭連接到軸，通常是萬向節（推薦）。
外部驅動器可以是電動馬達、液壓馬達或其他馬達，通過皮帶和滑輪直接連接到接頭，并且可以根據激振器規格而具有變速。
VR rotational motion exciters have a spheroidal cast iron body, within which two bearings support a shaft with eccentric weights fitted at either end, generating the declared centrifugal force.
Static moment, thus centrifugal force, are adjustable by means of additional weight inserts in steel or lead.
Bearings are lubricated by oil bath, which must be inserted by the end user. The typical application is with two VR exciters coupled together by means of a cardan shaft, with each VR fitted at either side of the machine.
They are available in executions 1U and 2U, with one joint and two joints respectively. The rotation of the shaft of the exciter with two joints (2U) is obtained by means of an external drive, connecting to the shaft by means of a joint, generally a cardan (recommended).
The external drive can be an electric motor, or hydraulic or other, to be connected directly to the joint by means of belts and pulleys and can have variable speed in function of the exciter specifications.

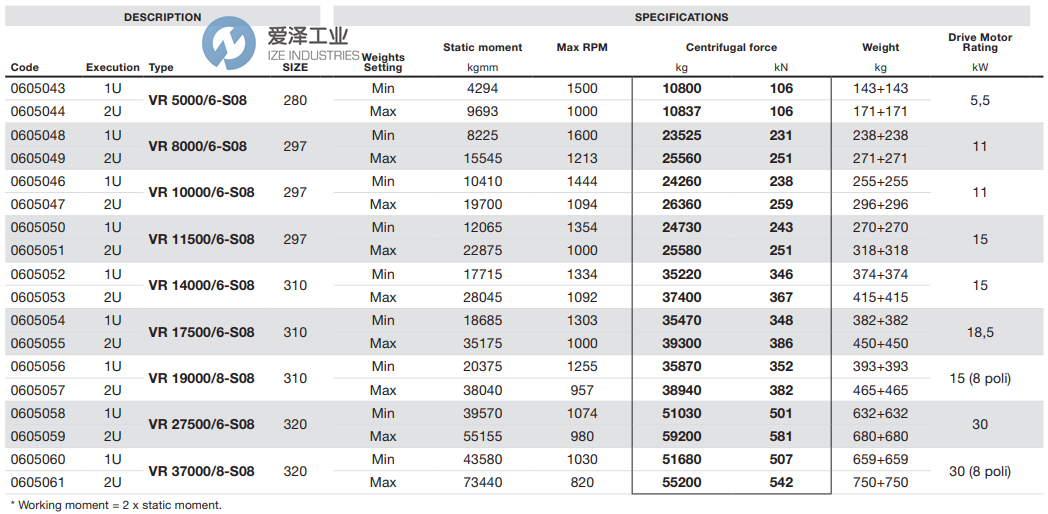

ITALVIBRAS電機VR系列選型
ITALVIBRAS電機VR系列其他常用型號：
ITALVIBRAS VR 5000/6-S08-1U
ITALVIBRAS VR 8000/6-S08-1U
ITALVIBRAS VR 10000/6-S08-1U
ITALVIBRAS VR 11500/6-S08-1U
ITALVIBRAS VR 14000/6-S08-1U
ITALVIBRAS VR 17500/6-S08-1U
ITALVIBRAS VR 19000/8-S08-1U
ITALVIBRAS VR 27500/6-S08-1U
ITALVIBRAS VR 5000/6-S08-2U
ITALVIBRAS VR 8000/6-S08-2U
ITALVIBRAS VR 10000/6-S08-2U
ITALVIBRAS VR 11500/6-S08-2U
ITALVIBRAS VR 14000/6-S08-2U
ITALVIBRAS VR 17500/6-S08-2U
ITALVIBRAS VR 19000/8-S08-2U
ITALVIBRAS VR 27500/6-S08-2U
