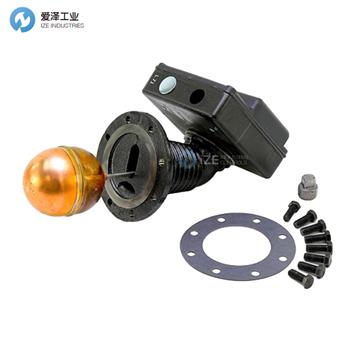

MCDONNELL&MILLER控制器150S-HD技術規格及介紹
For Model | 150S-HD |
Part Number | 173003 |
Repl. Head Model No. | Head mechanism |
Description | |
Weight lbs. (kg) | 11.0 (5.0) |
MCDONNELL&MILLER控制器150S系列介紹
The Series 150S is available as an alternative for Series 150 LWCO controls that contain mercury switches. Please keep in mind that in a replacement or repair situation you do not have to change out the entire control. A head replacement (i.e. 1 50S-HD) is all that's required.
There may be additional letters such as 'B', 'R',‘RL'， etc. in the sales catalog designation of the control. These additional letters designate tapping locations and sizes which have no affect on which head mechanism to purchase. All head mechanisms are interchangeable and can be installed on any body.
‘MD'Models
The‘MD' model should be used as a replacement head when the boiler operating pressure is less than 50 psi. These were created to provide a control with factory settings to compensate for the narrowing of setpoints. The larger differential between pump on and burner off reduces the potential for nuisance burner shutdown.
150S 系列可作為包含水銀開關的 150 系列 LWCO 控制器的替代品。 請記住，在更換或維修情況下，您不必更換整個控件。 只需更換一個磁頭（即 1 個 50S-HD）。
控件的銷售目錄名稱中可能還有其他字母，例如“B”、“R”、“RL”等。 這些額外的字母指定了攻絲位置和尺寸，這對購買哪種頭部機構沒有影響。 所有頭部機構都是可互換的，可以安裝在任何身體上。
‘MD’型號
當鍋爐工作壓力低于 50 psi 時，應使用“MD”型號作為更換頭。 創建這些是為了提供具有出廠設置的控件，以補償設定值的縮小。 泵打開和燃燒器關閉之間較大的差異降低了有害燃燒器關閉的可能性。
MCDONNELL&MILLER控制器其他常用型號：
McDonnell Miller 150S-HD
McDonnell Miller 150S-M-HD
McDonnell Miller 150S-MD-HD
McDonnell Miller 150S-M-MD-HD
McDonnell Miller 158S-HD
McDonnell Miller 158S-M-HD
McDonnell Miller 158S-M-MD-HD
McDonnell Miller 159S-HD
MCDONNELL&MILLER Level Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
