DAYTON泵3PXJ8產品參數
Specifications | |
Item | Electric Operated Drum Pump |
Action Type | Piston |
Gasket Material | Buna-N |
GPM | 32 |
Height | 53" |
Housing Material | 316L Stainless Steel |
HP | 1 |
Hz | 60 |
Inlet Size | 1.625" |
Max. GPM for Oil | 7 |
Max. GPM for Water | 32 |
Max. Head | 30 ft. |
Max. Liquid Temp. | 175 Degrees F |
Max. Pressure | 16 psi |
Max. Temp. | 175 Degrees F |
Max. Viscosity | 1500 CPS |
Maximum Head | 30 ft. |
Metered | No |
Motor Enclosure | Totally Enclosed Fan-Cooled |
Motor Type | Electric AC |
Outlet Size | 1.25" |
Overall Length | 53" |
Phase | 1 |
Pump Body Material | 316 Stainless Steel |
RPM | 10000 |
Self-Priming | Yes |
Suction Tube Length | 39" |
Suction Tube Type | Impeller |
Voltage | 220 VAC |
Wetted Materials | 316L Stainless Steel, PTFE and Buna |
DAYTON泵3PXJ8產品介紹

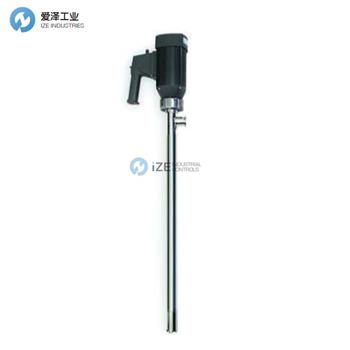

DAYTON Electric Operated Drum Pump: 1 1/10 hp Motor HP, 55 gal For Container Size, 220V AC, 5.0
DAYTON 電動滾筒泵：1 1/10 hp 電機 HP，55 gal 適用于容器尺寸，220V AC，5.0
DAYTON泵其他常見型號：
DAYTON 1DLP4
DAYTON 1DLP5
DAYTON 1DLP8
DAYTON 1DLR1
DAYTON 1DLR3
DAYTON 1DLR4
DAYTON 3PXK2
DAYTON 3PXJ9
DAYTON Pump NEW + ORIGINAL+ ONE YEAR WARRANTY
