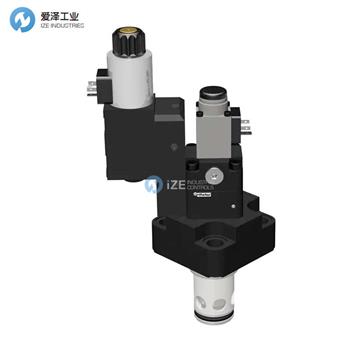

PARKER節流閥TEA032EW09B2NLWJ技術參數
Technical Specifications | |
Port Connection: | NG32 |
Function: | Flow direction from B to A |
Seal Material: | NBR |
Input Voltage: | 6 VDC |
Solenoid Option: | 24 V / 1.25 A |
Product Series: | Throttle valve |
Operation Type: | Pilot |
Actuation Type: | Proportional |
Function: | 2-way |
Mounting Type: | Slip-in cartridge |
Mounting Position: | Unrestricted |
Configuration: | N/A |
Maximum Operating Pressure: | 350 bar |
Minimum Pilot Pressure: | > 25 % of system pressure |
Maximum Flow Rate: | 950 L/min |
Flow Rate: | N/A |
Flow Direction: | B to A |
Maximum Operating Temperature: | 60 °C |
Minimum Operating Temperature: | -20 °C |
Seal Material: | NBR |
For Fluid Type: | Hydraulic oil according to DIN 51524 |
Weight: | 9 kg |
Body Material: | Steel/Cast iron (cover) |
PARKER節流閥TEA系列介紹
TEA 系列比例節流閥具有高達 9500 l/min 的流速和快速響應時間，適用于注塑和壓鑄應用。集成在先導回路中的方向閥可提供安全功能。
特點/優勢：
? 符合 ISO 7368 的腔體和安裝模式 - 便于快速集成
? 最大工作壓力高達 350 bar - 適用于要求苛刻的液壓應用
? 高達 9500 l/min 的高流量 - 可實現高效運行
? 各種尺寸，NG25 - NG100 - 允許極端可變的使用
With flow rates up to 9500 l/min and fast response times, proportional throttle valves series TEA are predestined for injection molding and die cast applications. The directional valve integrated in the pilot circuit provides the safety function.
Features/Benefits:
? Cavity and mounting pattern according to ISO 7368 - for quick, easy integration
? Maximum operating pressure up to 350 bar - suitable for demanding hydraulic applications
? High flow rates up to 9500 l/min - enables efficient operation
? Various sizes, NG25 - NG100 - allows extremely variable use

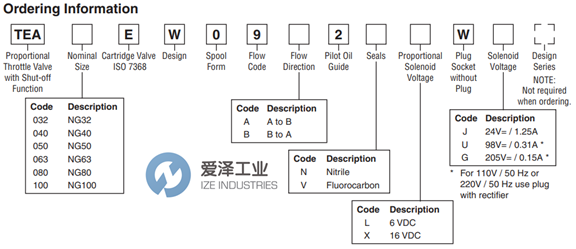

PARKER節流閥TEA系列選型
PARKER節流閥TEA系列其他常用型號：
PARKER TEA025EW09A2NXWJ
PARKER TEA040EW09B2NXWU
PARKER TEA063EW09A2NXWJ
PARKER TEA032EW09A2NLWJ
PARKER TEA032EW09A2NXWJ
PARKER TEA032EW09B2NLWJ
PARKER TEA032EW09B2NXWG
PARKER TEA032EW09B2NXWJ
PARKER TEA032EW09B2VXWJ
PARKER TEA040EW09A2NLWJ
PARKER TEA040EW09A2NXWJ
PARKER TEA040EW09A2VXWJ
PARKER TEA040EW09B2NLWJ
PARKER TEA040EW09B2NXWJ
PARKER TEA040EW09B2VLWJ
