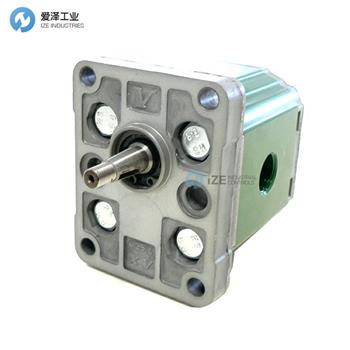

VIVOIL泵X1P1802FBBA技術參數
Series | X = series XV |
Group | 1 = group 1 |
Category | P = unidirectional pump |
Displacement | 18 = 1.7 |
Flange | 02 = ?25.4 STANDARD EUROPEAN right rotation |
Shaft | F = CO001 - Tapered 1:8 - ?10 - M7x1 - key thk.2.4 |
IN | B = inlet - 3/8" GAS |
OUT | B = outlet - 3/8" GAS |
Cover | A = standard |
VIVOIL泵X1P1系列介紹
標準單向液壓泵，鋁制外殼，帶外部齒輪
屬于第1組零件。
特點與功能
此型號的法蘭直徑為25.4毫米。泵的旋轉方向可以為順時針或逆時針，無需添加任何部件即可逆轉*，以優化空間存儲和適應您的需求。有關更改旋轉方向的說明，請參閱本目錄第19頁。
*適用于所有版本，除非出口或入口在前法蘭的型號。
技術參數
排量范圍：0.91 cm3/轉至9.88 cm3/轉
最高壓力：至300巴
轉速：最高6000 rpm（轉/分鐘）
可用選項
Viton（耐化學腐蝕密封材料）
最大壓力閥
提升版軸密封，適用于連續壓力高達6巴
入口和出口可以在泵體、前法蘭或后蓋設置
雙軸設計
其他軸類型：
錐形鍵1:8軸
銑削軸
花鍵軸
Standard unidirectional hydraulic pump in aluminium and with external gears.
It is a component of group 1.
Features and functions
The flange of this model has a diameter of 25,4 mm. The rotation verse of the pump is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs. Please refer to page 19 of this catalogue for instructions on changing the rotation verse.
* Valid for all versions of this model except those with the outlet or inlet in the front flange.
Technical Data
Displacements from 0.91 cm3/rev to 9.88 cm3/rev
Maximum pressures up to 300 bar
Rotation speeds up to 6000 rpm
Options available
Viton
Maximum pressure valve
Reinforced shaft seal for pressures up to 6 bar continuous
Inlet and outlet in the body, front flange or back cover
Double shaft
Other shafts available:
Tapered shaft 1:8 with key
Milled shaft
Splined shaft
VIVOIL泵XV-1P系列其他常用型號：
VIVOIL X1P1602FBBA
VIVOIL X1P1702FBBA
VIVOIL X1P1802FBBA
VIVOIL X1P2002FBBA
VIVOIL X1P2102FBBA
VIVOIL X1P2302FBBA
VIVOIL X1P2502FBBA
VIVOIL X1P2702FBBA
VIVOIL X1P2902FBBA
VIVOIL X1P3102FBBA
VIVOIL X1P3202FBBA
VIVOIL X1P3402FBBA
VIVOIL X1P3602FBBA
