HATENBOER-WATER濾芯HWMB系列技術參數
Availability | |
The most common from stock | |
PP core | |
Recommended ΔP at 20℃ | 1.5 Bar |
Maximum ΔP at 20℃ | 4.0 |
at 50℃ | 1.5 |
at 80℃ | 0.25 |
Grade of filtration | 1, 5, 10, 20, 30, 50, 75, 100, 150 micron |
Length of filter | 10, 20, 30 and 40”. And 10 and 20” Big blue |
Width of filter | |
Outside diameter: | 64 mm 116 mm (Big Blue) |
Core diameter: | 28 mm |

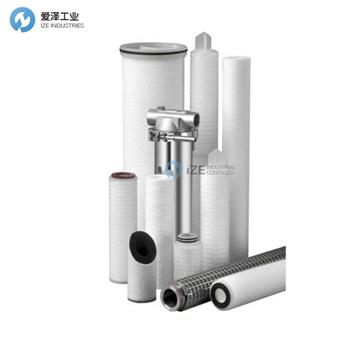

HATENBOER-WATER濾芯HWMB系列介紹
HWMB is the latest development in nominal rated spun bonded filter cartridge design. Manufactured with a true graded density, these elements exhibit a high void volume that results in low clean differential pressure losses and an excellent dirt holding capacity when compared to similarly rated elements. Each cartridge is complete with an integral support for maximum strength. The superior structure remains integral even under severe operating conditions and is less prone to media migration and breakthrough often found on other unsupported spun bonded products.
Construction
Support core: One piece high strength all polypropylene
Outer core: HWMB polypropylene fibers are blown continuously onto the support core, without the need for binders, resins or lubricants. This results in a one piece construction that is resistant to unloading and media shedding. Thermally bonded fiber matrix minimizes fiber migration.
End cap: welded direct to the core for extra security and strength.
Materials meet US FDA Title 21 and USP Class VI requirements.
HWMB 是標稱額定紡粘濾芯設計的最新發展。這些濾芯采用真正的分級密度制造，與類似額定值的濾芯相比，具有較高的空隙體積，從而導致較低的清潔壓差損失和出色的納污能力。每個墨盒都配有一個完整的支撐，以實現最大強度。即使在惡劣的操作條件下，優越的結構仍然是不可或缺的，并且不易發生其他無支撐紡粘產品上常見的介質遷移和突破。
建造
支撐芯：一件式高強度全聚丙烯
外芯：HWMB 聚丙烯纖維連續吹到支撐芯上，無需粘合劑、樹脂或潤滑劑。這導致了一種抗卸載和介質脫落的一體式結構。熱粘合纖維基質可最大限度地減少纖維遷移。
端蓋：直接焊接到核心，以增加安全性和強度。
材料符合美國 FDA Title 21 和 USP Class VI 要求。
HATENBOER-WATER濾芯其他常用型號：
HATENBOER-WATER HWMB40005
HATENBOER-WATER FILTER ELEMENT NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HATENBOER-WATER濾芯HWMB40005的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
