M&C過濾器FP-20T產品參數
Technical Data | |
FP | |
Length of filter element | 75 mm, Option: F...150 = 150 mm |
Sample connections: gas inlet/-outlet | 3 x G 1/4i (1 x closed) DIN ISO 228/1* |
Condensate connection | / |
Pressure at 20 °C [68 °F] | Max. 5 bar abs. |
Pressure with GL connection adapter | / |
Internal dead volume | 65 cm3 , F...150 = 180 cm3 |
Filter surface | 70 cm2 , F...150 = 140 cm2 |
Materials: Filter head | PVDF, PTFE, PTFE-ko, stainless steel 316Ti |
Filter body | Glass |
Filter element | PTFE, glass, glass fiber, ceramic, stainless steel, wire cloth stainl. steel |
Seals: O-ring...-D-connection | FP/-D, FT-H, FS/-D = FKM, FT/-D = FEP |
Temperature of ambient or sample max. | 80 °C [176 °F] PVDF, 100 °C [212 °F] PTFE, 180 °C [356 °F] PTFE-ko, stainless steel, glass (fiber), ceramics |
Method of mounting | Wall-mounting |
Weight approx | 0.4-1.0 / F...150 = 0.5 to 1.2 kg [≈ 1.1 to 2.7 lbs] |
M&C過濾器FP-20T產品介紹及選型
Universal Filter FP-20T
Part No.: 01F1400
Product features
Modular designed filter with filter head made of PVDF
Deep-acting PTFE filter element with a filter porosity of 20 μm
With wall-mounting bracket
Straightforward filter element change without tools
For universal use
3 female threaded gas connections: G 1/4"
Sample gas and ambient temperature: max. +80 °C [+176 °F]
Material of sample-contacting parts: PTFE, PVDF, Viton?, glass
通用過濾器 FP-20T
零件編號：01F1400
產品特點
模塊化設計的過濾器，過濾頭由 PVDF 制成
過濾孔隙率為 20 μm 的深效 PTFE 濾芯
帶壁掛支架
無需工具即可直接更換濾芯
通用
3 個內螺紋氣體連接：G 1/4"
樣氣和環境溫度：最高 +80 °C [+176 °F]
樣品接觸部件材料：PTFE、PVDF、Viton?、玻璃

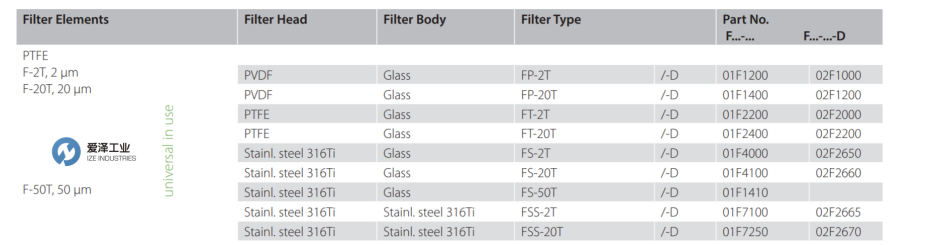

M&C過濾器其他常見型號：
M&C FP-2T
M&C FP-20T
M&C FT-2T
M&C FT-20T
M&C FS-2T
M&C FS-20T
M&C FS-50T
M&C FSS-2T
M&C FSS-20T
M&C The filter cartridge NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于M&C過濾器FP-20T的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for M&C products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: .
