AIR-LOGIC過濾器F97043B85技術參數
Specifications | |
Brands | Air Logic |
Filter Size | 43 μm |
Color | Light Blue |
Maximum Pressure | 125 psi8.6 bar |
Typical Tube Retention Pressure | 125 psi8.6 bar |
Filtration | 43 μm |
Tubing Inside Diameter (ID) | 1/8 in |
Connection Type | Barbed |
Wetted Material(s) | Polysulfone (PSU)Stainless Steel (SS) |
Installation Method | Push-In |
Connection Size | 10-32 Threads |
EU RoHS 2 (Directive 2011/65/EU with amendment (EU) 2015/863) | Yes |
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant | Yes |
Additional Information | This filter is well suited to filtering media entering or leaving a critical device. Integrate the threaded filter into a system to create a filtered input or output. Ex. Regulator, Valve, cylinder, or pump. |
AIR-LOGIC過濾器F97043B85產品介紹

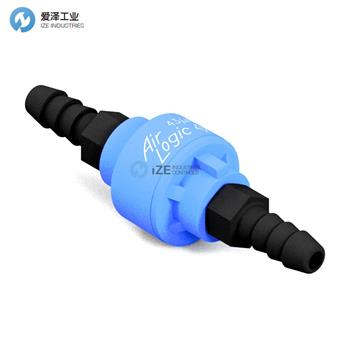

Threaded inline filters protect sensitive devices from system contamination in a pneumatic or liquid circuit. Filters are a flat stainless steel weave meant for small devices or for larger systems working in tandem with system-wide filtration. There is no flow orientation to the inline filters, the filtered area and canister volume are equal on both sides of the filter. Threaded inline filters offer the largest filtered area in Air Logic's offerings.
Threaded inline filters are commonly used to protect against debris generated inside of a system or device. Ex. Teflon tape debris during assembly, broken o-rings from valves, machining chips from threads.
螺紋在線過濾器可保護敏感設備免受氣動或液體回路中的系統污染。過濾器是一種扁平的不銹鋼編織物，適用于小型設備或與全系統過濾協同工作的大型系統。在線過濾器沒有流動方向，過濾器兩側的過濾面積和濾罐體積相等。螺紋在線過濾器提供 Air Logic 產品中最大的過濾面積。
螺紋在線過濾器通常用于防止系統或設備內部產生碎屑。前任。組裝過程中的聚四氟乙烯膠帶碎屑、閥門上的 O 型圈損壞、螺紋加工切屑。
AIR-LOGIC過濾器其他常用型號：
AIR-LPGIC F97043
AIR-LPGIC F97043B80
AIR-LPGIC F97043B85
AIR-LPGIC F97043B86
AIR-LPGIC F97043P80
AIR-LPGIC F97043P85
