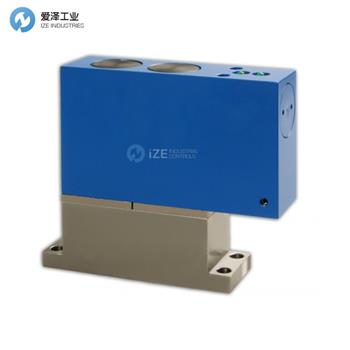

CTTEMAG控液壓制單元ZES-40產品參數
Specification | |
Operating mode | constant operation |
Working conditions: | |
- ambient temperature | 0÷65°C |
- relative humidity of air | up to 95%, at the temperature of 25°C |
Hydraulic liquid | oil-in-water emulsion, hydraulic oil or other oil with similar properties |
- rated viscosity of the liquid | 37 mm2/s |
- viscosity range | 2.8 do 380 mm2/s |
- required filtration level | 40 μm |
- rated pressure | 32 MPa |
- maximum pressure | 35 MPa |
- maximum flow | depending on working pressure, hydraulic medium and acceptable pressure drops on the valves of operating manifolds |
- optimum working temperature (of the liquid in the container) | 20 ÷ 60°C |
- liquid temperature range | 0 ÷ 70°C |
Supply voltage | 10,2 ...13,8 V DC from a power supply unit with an intrinsically safe output and maximum output current of 2 A |
Acceptable output parameters | Ui = 15.3 V, Ii = 2 A, Li ≈0; Ci ≈0 |
Coil resistance | R = 126 ± 10 n |
Rated current of the safety fuse of the coil | 250 mA, one-shot fuse |
Size | 40 × 133,5 × 165 mm |
Weight | about 4.0 kg |
Casing protection degree | IP 65 |
CTTEMAG控液壓制單元ZES-40產品介紹
描述
電氣控制礦山掘進機井下地下，易爆區域中使用的機器和設備中工作介質的流動方向
特征
機器和液壓設備執行分配器的電氣控制
用于潛在爆炸性環境
Description
Electrical control of the flow direction of the working medium in machines and devices used in the underground of mining plant headings, in potentially explosive areas
Features
electric control of executive distributors in machines and hydraulic devices
intended for use in potentially explosive atmospheres
CTTEMAG控液壓制單元其他常見型號：
CTTEMAG PCC-3
CTTEMAG RCC-2
CTTEMAG CPW-1
CTTEMAG CVD-1000
CTTEMAG SEMI-2
CTTEMAG CPO-2/L/T
CTTEMAG ZEW-1
CTTEMAG PAC-1
CTTEMAG CT-90/PT
CTTEMAG Control unit NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CTTEMAG控液壓制單元ZES-40的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CTTEMAG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
