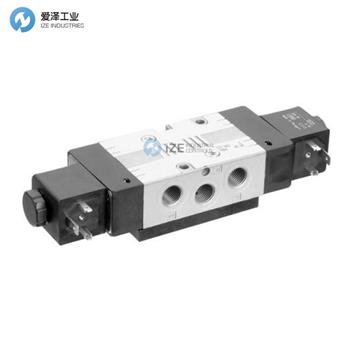

AVENTICS電磁閥5776625302技術參數
Specifications | |
Activation | Electrically |
Frame size | CD07 |
Switching principle | 5/2, double solenoid |
Actuating control | Double Solenoid |
Manual override | with detent |
Pilot | Internal |
Nominal flow Qn | 1200 l/min |
Compressed air connection | G 1/4 |
Working pressure min. | 2 bar |
Working pressure max | 10 bar |
Electrical connection type | Plug |
Electrical connection size | EN 175301-803, form A |
Connector standard | EN 175301-803:2006 |
Reverse polarity protection | Protected against polarity reversal |
Pilot valve width | 30 mm |
Compatibility index | 13, 14 |
basic valve with electrical connector | Basic valve without coil |
Duty cycle | 100% |
Sealing principle | soft seal |
Standards | NAMUR |
Min. ambient temperature | -25 °C |
Max. ambient temperature | 50 °C |
Temperature resistance | -25 °C cold-resistant |
Housing material | Die cast zinc, Polyamide fiber-glass reinforced |
AVENTICS電磁閥其他常用型號：
AVENTICS 5776020220
AVENTICS 5776025270
AVENTICS 5776025280
AVENTICS 5776025302
AVENTICS 5776030220
AVENTICS 5776035280
AVENTICS 5776035302
AVENTICS 5776070220
AVENTICS 5776070360
AVENTICS 5776075280
AVENTICS 5776075302
AVENTICS 5776080220
AVENTICS 5776085270
AVENTICS 5776085280
AVENTICS 5776085302
AVENTICS 5776220220
AVENTICS 5776225280
AVENTICS Solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS電磁閥5776625302的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
