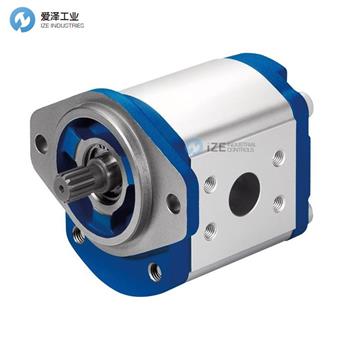

REXROTH齒輪泵AZPB-32-2.0LNEXXMA-S0073規格描述
Product attributes | |
Max. flow [l/min] | 10.0 |
Nominal size [cm3/rev] | 2 |
Max. intermittent pressure [bar] | 250 |
Maximum rotational speed [rpm] | 5000 |
Drive shaft | Tang drive |
Direction of rotation | Counter-clockwise rotation |
Front cover | Mounting flange (CPMBosch EP9) |
Housing material | Aluminum |
Noise level | Standard noise level |
Product | External gear unit |
Function | Pump |
Model | High perf(B)(1.0..7.1 cc/rev) |
Series | Bearing dia. 12 mm or 12.7 mm |
Version | Zn plated or Al, aligned cover |
Port connection | Non-standard version |
Sealing material | NBR |
Rear cover | Axial pressure & suction port |
Weight [kg] | 1.2 |
REXROTH齒輪泵AZPB系列特點
外嚙合齒輪泵的關鍵任務是將機械能（扭矩和轉速）轉換為液壓能（流量和壓力）。為了避免不必要的高熱量損失，人們追求高效率的裝置。這些是通過壓力依賴的間隙密封和高精度制造技術實現的。
基于大批量生產確保的一致高質量
根據ISO或SAE標準的驅動軸以及客戶特定的解決方案
使用壽命長
用于高負荷的滑動軸承
端口連接：法蘭式或螺紋式
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Consistent high quality based on large-volume production
Drive shafts according to ISO or SAE and customer specific solutions
Long service life
Slide bearings for high loads
Port connections: flanged or threaded
REXROTH泵AZPB系列其他常用型號：
REXROTH AZPB-32-2.0LNEXXMA-S0073
REXROTH AZPB-32-1.0RCP02MB
REXROTH AZPB-32-1.0RHO01MB
REXROTH AZPB-32-1.0RQR12KB
REXROTH AZPB-32-1.0RQR12KB-S0022
REXROTH AZPB-32-1.0RRR12KB
REXROTH AZPB-32-2.0LNEXXMA-S0073
REXROTH AZPB-32-2.0LNM02MB
REXROTH AZPB-32-2.0RCP02MB
REXROTH AZPB-32-2.0RHO01MB
REXROTH AZPB-32-2.0RQR12KB
REXROTH AZPB-32-2.0RQR12KB-S0022
REXROTH AZPB-32-2.0RRR12KB
REXROTH AZPB-32-2.5RHO01MB
REXROTH AZPB-32-3.1LCP02MB
REXROTH pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH齒輪泵AZPB-32-2.0LNEXXMA-S0073的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
