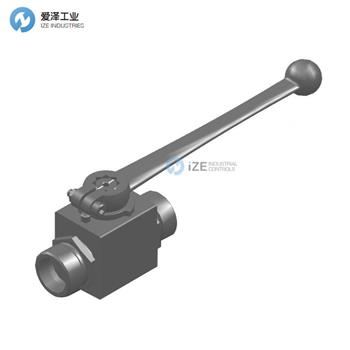

HYDAC球閥KHB-20SR-1112-01X-A規格描述
Technical data | |
Design | KHB |
Nominal size DN | 16 |
Type of connection | Cutting ring |
Connection/flange designation | SR |
Standard | DIN2353,ISO8434-1-HeavyDuty |
Housing material, ball valve | Steel |
Material code | Steel-steel-POM-NBR |
Surface protection | Zinc-plated |
Design of lever | Straight lever |
Wrench size | SW12 |
Nominal pressure | 420 |
Nominal pressure | 42 |
Nominal pressure | 6000 |
Actuation | Hand lever |
Approval/test certificate | No approval |
Fixing holes | Without fixing holes |
Lock | Without lock |
Switch position monitoring | Without switch pos. monitoring |
Combination | No BV combination |
Object designation | KHB-20SR-1112-01X-A |
Part number | 700602 |
HYDAC球閥KHB系列其他常用型號：
HYDAC KHB-20SR-1112-01X-A
HYDAC KHB-20SAE-1114-01X-A
HYDAC KHB-20NPT-1112-09X-A
HYDAC KHB-20NPT-1114-01X-A
HYDAC KHB-22LR-1114-01X-A
HYDAC KHB-20NPT-1114-16X-A-SO760
HYDAC KHB-25SR-1114-16X-A-SO760
HYDAC KHB-22LR-1112-16X-A-E-1.000-SO760
HYDAC Ball valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC球閥KHB-20SR-1112-01X-A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
