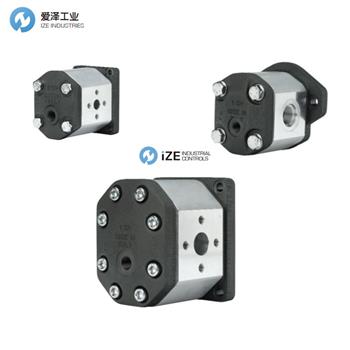

MARZOCCHI齒輪泵GHP2-D-16-EP產品參數
Specification | |
Displacement | From 4.5 to 28.2 cc/rev |
Max. Continuous Pressure | 280 bar |
Max. Intermittent Pressure | 295 bar |
Max. Peak Pressure | 310 bar |
Max. Speed | 4000 rpm |
MARZOCCHI齒輪泵GHP2-D-16-EP產品簡介
外嚙合齒輪泵是現代液壓系統中最常用的泵。它們具有多功能性，強度和長使用壽命。其簡單的結構可確保有限的購買成本和維修。
憑借這些基本概念，再加上不斷改進的產品設計和功能，基于多年的經驗進行的研究-材料選擇，生產過程的精確度以及隨后對大量生產零件的測試，齒輪泵已達到較高水平。因此，產品可以在惡劣的工作條件下工作并傳遞高液壓動力。此外，Marzocchi泵具有良好的液壓，機械和容積效率，低噪音水平，并且最后但并非最不重要的是，緊湊的尺寸和低的重量/功率比。
齒輪泵通常由一對齒輪組組成，齒輪組由兩個分別用于0.25、0.5和1P組的鋁襯套支撐，或帶有在第1、2、3和4組中涂有減摩材料的滑動軸承的襯套，一個閥體，一個固定法蘭和一個蓋子。驅動齒輪的軸伸出法蘭，安裝了雙唇密封圈（內唇為密封，外唇為防塵密封），用于0.25、0.5和1P組，或兩個相對的單唇密封環（組1、2、3和4的外部密封圈）。
泵體，法蘭和蓋由特殊的高強度鋁合金制成，即使在承受高壓（連續或間歇或峰值壓力）的情況下，也能最大程度地減少變形。主體通過擠壓成型，而法蘭和蓋通過壓鑄（某些型號甚至采用重力壓鑄）獲得。
External gear pumps are the most popular pumps used in modern hydraulic systems. They feature versatility, strength and long useful life. Their simple construction ensures limited purchase costs and servicing.
Thanks to these basic concepts, together with ever-improving product design and features, research -based on many years of experience - accuracy in material selection, production process followed in great detail and tests on mass-produced parts, our gear pumps have reached top quality standards.For this reason, our products can work under heavy operating conditions and transmit high hydraulic power. Furthermore, Marzocchi pumps feature good hydraulic, mechanical and volumetric efficiency, low noise level and, last but not least, compact dimensions and low weight/power ratio.
A gear pump usually consists of a gear pair supported by two aluminum bushes for groups 0.25, 0.5 and 1P, or bushes with plain bearings coated with antifriction material for groups 1, 2, 3 and 4, a body, a securing flange and a cover. Shaft of the driving gear projecting beyond the flange mounts a twin-lip seal ring (the inner lip being a seal, the outer lip being a dust seal) for groups 0.25, 0.5 and 1P, or two opposed single-lip seal rings (the outer being a dust seal) for groups 1, 2, 3 and 4.
Pump body, flange and cover are made of special hi-resistant aluminum alloys for minimized deformation even when subject to high pressure, be it continuous or intermittent or peak pressure. The body is profiled by means of extrusion, whereas flange and cover are obtained by means of die-casting (even gravity die-casting for some models).
MARZOCCHI齒輪泵GHP2-D-16-EP其他常見型號：
MARZOCCHI GHP2-D-6
MARZOCCHI GHP2-D-9
MARZOCCHI GHP2-D-10
MARZOCCHI GHP2-D-12
MARZOCCHI GHP2-D-13
MARZOCCHI GHP2-D-16
MARZOCCHI GHP2-D-20
MARZOCCHI GHP2-D-22
MARZOCCHI GHP2-D-25
MARZOCCHI GHP2-D-30
MARZOCCHI GHP2-D-34
MARZOCCHI GHP2-D-37
MARZOCCHI GHP2-D-40
MARZOCCHI GHP2-D-50
