MAHLE過濾器PI2015-58產品參數
規格參數
濾芯類型:低壓過濾器
系列:Pi 200
額定尺寸:150 l/min
連接類型:ISO 228 螺紋
連接尺寸:G 1 1/4
最大工作壓力:32 巴
工作溫度范圍:-30°C 至 +120°C
密封材料:NBR
過濾器頭材質:鋁(Alu)
過濾器殼體材質:鋁(Alu)
濾芯類型:FG 標準
旁通閥壓力(巴):3.50
維護指示器:是
濾芯安裝:否
維護指示器類型:差壓指示器
維護指示器評估:電氣/機械
觸點類型:閉合 / 開啟
指示器設定:2.2 巴
電氣連接:連接器
H.T.S.:84219990
原產國/地區:德國(DE)/ 08
產品重量:2.100 公斤
Specification
Filter type:Low pressure filter
Series:Pi 200
Nominal size:150 l/min
Connection type:Thread ISO 228
Connection size:G 1 1/4
max. operating pressure:32 bar
Operating temperature range:-30°C - +120°C
Sealing material:NBR
Filter head material:Alu
Filter housing material:Alu
Element pick-up:FG Standard
Bypass valve (bar):3,50
Maintenance indicator:Yes
Element installation:No
Maintenance indicator type:Differential pressure indicator
Evaluation maintenance indicator:electrical / mechanical
Contact type:Closer / opener
Indicator setting:2,2 bar
Electr. connection:Connector
H.T.S.:84219990
Country of origin / region:DE/08
Product weight:2,100 KG

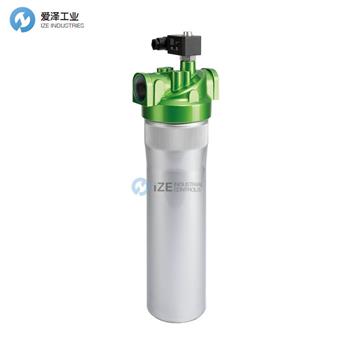

MAHLE過濾器PI200產品介紹
Pi 200系列特別便于維護,外部即可進行操作。憑借便捷的服務方式和優選的過濾元件,過濾器能有效防止污染。
額定尺寸最高可達600
體積緊湊,節省空間
流線型設計,壓力損失 minimal
具有螺紋連接或法蘭連接兩種設計選擇
Pi 200 is particularly maintenance-friendly and accessible from the outside. Due to the service-friendly handling and the optimal filter selection, the filter protects against contamination.
Nominal size to 600
Low space requirement due to compact design
Minimal pressure loss due to streamlined design of components
Design with threaded connection or flange connection
MAHLE過濾器PI2015-58其他常見型號:
MAHLE PI2015-58
MAHLE PI2011-058 *E77680465
MAHLE PI2011-058 *E77680937
MAHLE PI2011-058 *E77680986
MAHLE PI2011-069 *E77718778
MAHLE PI2015-011 *E77680358
MAHLE PI2015-047 *E77680358
MAHLE PI2015-057 *E77657190
MAHLE PI2015-057 *E77680358
MAHLE PI2015-057 *E77680994
MAHLE PI2015-057 *E77681034
MAHLE PI2015-058 *E77680358
MAHLE PI2015-058 *E77680473
MAHLE PI2015-058 *E77680945
MAHLE PI2015-058 *E77680994
MAHLE PI2015-060 *E77657190
MAHLE PI2015-060 *E77680358
MAHLE PI2015-060 *E77680945
MAHLE PI2015-060 *E77711138
MAHLE PI2015-061 *E77681083
MAHLE PI2015-068 *E77681034
MAHLE PI2015-069 *E77680473
MAHLE PI2015-069 *E77681034
MAHLE PI2015-069 *E77681083
