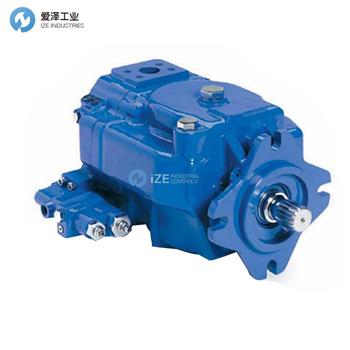

VICKERS液壓泵PVH098R01AJ30A250000002001AB010A產品參數

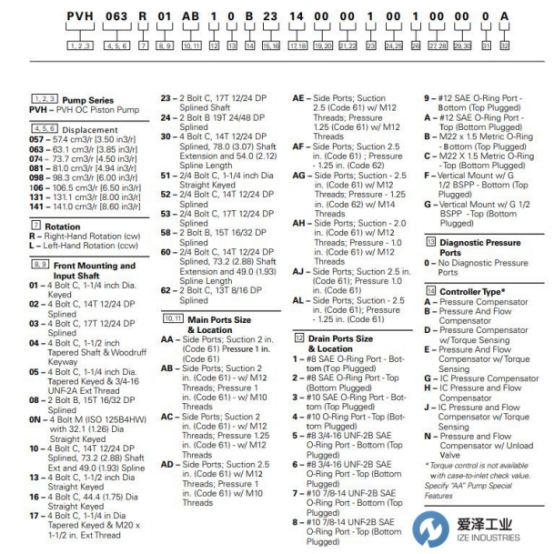

PVH098R01AJ30A250000002001AB010A |
PVH –– PVH OC Piston Pump |
098 – 98.3cm3/r[6.00 in3/r] |
R-Right-Hand Rotation(cw) |
01 – 4 Bolt c,1-1/4 inch Dia.Keyed |
AJ –Side Ports;Suction 2.5 in.(Code 61);Pressure-1.0 in.(Code 61) |
3 – #10 SAE O-Ring Port-Bot-tom (Top Plugged) |
0 –No Diagnostic Pressure Ports |

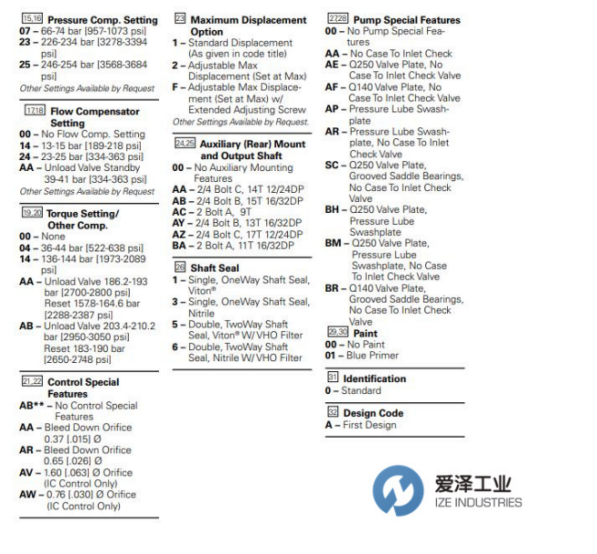

A –Pressure Compensator |
25 –246-254 bar[3568-3684 psi] |
00 – No Flow Comp. Setting |
00-None |
00-None |
2 – Adjustable Max Displacement (Set at Max) |
AB – 2/4 Bolt B, 15T 16/32DP |
0 – No Auxiliary Mounting Features |
1 – Single, OneWay Shaft Seal, Viton? |
0 – Standard |
A – First Design |
VICKERS液壓泵PVH介紹及選型
Eaton’s Vickers? PVH high flow, high performance pumps are a family of variable displacement, inline piston units that incorporate the proven design, quality manufacturing techniques and operating features of other Vickers piston pumps, but in a smaller, lighter package.
The PVH series has been specially designed to meet the 250 bar (3625 psi) continuous duty performance requirements of new generation equipment designs.
These are efficient, reliable pumps, with a selection of optional controls for maximum operational flexibility. Designed specifically for strenuous application, they provide the productivity gains and controllability improvements desired in earthmoving, construction, machine tool, plastics, and all other energy-conscious markets. As with all Eaton products, these pumps have been fully laboratory tested and field proven
PVH Series Benefits
? Versatile design includes single pumps, thru-drive arrangements, and a variety of drive shaft and control options that will adapt to any application and provide the most cost effective installation.
? Proven components designed into a heavy duty, compact housing to provide 250 bar (3625 psi) continuous operating performance, and 280 bar (4050 psi) operating performance in a load sensing system. This design assures long life at the higher performance levels required of today’s power-dense machinery.
? Compact and lightweight design to reduce the application weight, and provide better access for installation and servicing.
? Service kits developed for the most critical rotating and control components to simplify and assure successful pump servicing.
? Quiet designs available for noise-sensitive industrial applications, reducing sound levels further to provide a more acceptable environment.
? Designed for maximum efficiency in any type of application. A variety of compensators provide the most effective system control, and the 95%-plus volumetric efficiency means more flow, and more input energy, is directed to the work and not into heat and waste.
? Heavy duty bearings and shafts result in minimum internal deflections and wear, providing for longer life and maximum uptime.
Eaton的Vickers?PVH高流量，高性能泵是一系列可變排量的直列活塞單元，這些單元結合了其他Vickers活塞泵的成熟設計，高質量制造技術和操作特性，但采用更小，更輕的包裝。
PVH系列經過專門設計，可滿足新一代設備設計對250 bar（3625 psi）連續工作性能的要求。
這些是高效，可靠的泵，并具有可選的控制選項，可最大程度地提高操作靈活性。它們專為苛刻的應用而設計，可提供土方工程，建筑，機床，塑料以及所有其他節能的市場所期望的生產率提高和可控性改進。與所有伊頓產品一樣，這些泵已經過全面的實驗室測試，并經過現場驗證
PVH系列的優點
?多功能的設計包括單泵，直通驅動裝置以及各種驅動軸和控制選項，這些選項可適應任何應用并提供最具成本效益的安裝。
?經過驗證的組件設計為重型緊湊型外殼，可在負載傳感系統中提供250 bar（3625 psi）的連續運行性能和280 bar（4050 psi）的運行性能。這種設計可確保以當今功率密集型機械所要求的更高性能水平實現長壽命。
?緊湊輕巧的設計減輕了應用程序的重量，并為安裝和維修提供了更好的通道。
?為最關鍵的旋轉和控制組件開發了維修套件，以簡化并確保成功進行泵維修。
?安靜的設計可用于對噪聲敏感的工業應用，從而進一步降低了聲級，從而提供了更可接受的環境。
?專為在任何類型的應用中實現最高效率而設計。各種補償器可提供最有效的系統控制，容積效率超過95％意味著更多的流量和更多的輸入能量直接用于工作，而不是熱量和廢物。
?重型軸承和軸可最大程度地減少內部撓度和磨損，從而延長使用壽命并延長正常運行時間。
VICKERS液壓泵PVH系列其他常見型號：
VICKERS PVH057R01AA50A250000001001AB010A
VICKERS PVH074QIC-RSF-IS-10-C25-31
VICKERS PVH074R01AA10A25000002001AB010A
VICKERS PVH098R01AJ30A140000001001AC010A
VICKERS PVH098R01AJ30A250000001001AB010A
VICKERS PVH098R01AJ30A250000001001AW010A
VICKERS PVH098R01AJ30A250000002001AB010A
VICKERS PVH098R01AJ30B072000002001AE010A
VICKERS PVH098R01AJ30B341900001001AF010A
VICKERS PVH098R01AJ30D250005001001BC010A
VICKERS PVH098R01AJ30D250010001001AE010A
VICKERS PVH098R01AJ30E252009001001AE010A
VICKERS PVH098R13AD30E252018001AM1AE010A
VICKERS PVH098R13AJ30A070000001AJ1AE010A
VICKERS PVH098RAD30A250000002001AB010A
VICKERS PVH131R12AF30B25200000100100010A
VICKERS PVH131R13AF30A250000001001AB010
VICKERS PVH131R13AF30A250000002001AE010A
VICKERS PVH131R13AF30B252000001001AB010A
VICKERS PVH141R13AF30B25200000100/AB010A
VICKERS PVH141R13AF30B252000001001AB010A
VICKERS PVH98QIC-RF-1S-10
VICKERS PVH98QIC-RF-1S-10-C14-31
VICKERS PVH98QIC-RF-1S-10-CM7-31-057
VICKERS PVH98QIC-RF-2S-10-CM7-31
VICKERS PVH98QICRSF1S10C2531
VICKERS PVH98QIC-RSM-1S-11
VICKERS PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS液壓泵PVH098R01AJ30A250000002001AB010A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
