REXROTH泵A4VSO系列規格描述
Size | 355 | 500 | 750 | 1000 | 355 | 500 | 750 | |||
Version | Standard | High speed | With charge pump | |||||||
Displacement geometric, per revolution | Vg max | cm3 | 355 | 500 | 750 | 1000 | 355 | 500 | 750 | |
Nominal pressure | pnom | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
Maximum pressure | pmax | bar | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
Maximum speed 1) | at Vg max | nnom | rpm | 1500 | 1320 | 1200 | 1000 | 1700 | 1500 | 1500 |
Flow | at Vg max and nnom | qV nom | l/min | 533 | 660 | 900 | 1000 | 604 | 750 | 1125 |
at Vg max and n = 1500 rpm | qV 1500 | l/min | 533 | 581 2) | 770 2) | 533 | 581 | 1125 | ||
Power | at qV nom and pnom | P | kW | 311 | 385 | 525 | 583 | 352 | 437 | 656 |
at qV 1500 and pnom | P 1500 | kW | 311 | 339 | 449 | 311 | 339 | 656 | ||
Torque | at Vg max and pnom | M | Nm | 1976 | 2783 | 4174 | 5565 | 1976 | 2783 | 4174 |

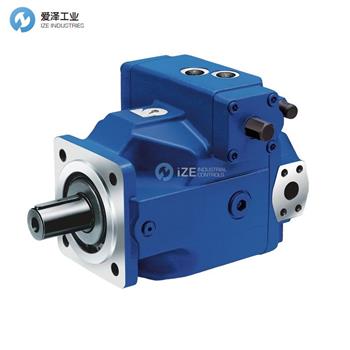

REXROTH泵A4VSO系列產品介紹
? 帶有斜盤設計的軸向柱塞旋轉組的變量泵，用于開式回路中的靜液壓驅動
? 流量與驅動速度和排量成正比。
? 通過調節斜盤角度可以無級改變流量。
? 優良的吸力性能
? 低噪音
? 使用壽命長
? 模塊化設計
? 可變直通驅動選項
? 視覺旋轉角度指示器
? 可自由改變安裝位置
? 適用于變速驅動器
? HF 模式可減少 HFC 模式的數據，提供特殊版本
? Variable pump with axial piston rotary group of swashplate design for hydrostatic drives in open circuit
? Flow is proportional to the drive speed and displacement.
? The flow can be infinitely varied by adjusting the swashplate angle.
? Excellent suction performance
? Low noise level
? Long service life
? Modular design
? Variable through drive options
? Visual swivel angle indicator
? Freely variable installation position
? Suitable for variable-speed drives
? HF mode for reduced data possible for HFC mode, special version available
REXROTH泵A4VSO系列其他常用型號：
REXROTH AA4VSO40DFR/10R-PPB13N00 R902425937
REXROTH AA4VSO40DFR/10R-PPB13N00E R902494848
REXROTH AA4VSO40DFR/10R-PZB13K68 R902465627
REXROTH AA4VSO40DFR/10R-PZB13N00 R902480543
REXROTH AA4VSO40DFR/10R-VPB13N00 R902538800
REXROTH AA4VSO40DFR/10R-VZB13N00 R902492088
REXROTH AA4VSO40DFR1/10R-PPB13N00 R902423269
REXROTH AA4VSO40DFR1/10R-PZB13K68 R902492723
REXROTH AA4VSO40DFR1/10R-VPB13K52 R902518225
REXROTH AA4VSO40DFR1/10R-VPB13N00 R902542210
REXROTH AA4VSO40DR/10L-PPB13K31 R902474571
REXROTH AA4VSO40DR/10L-PPB13N00 R902423738
REXROTH AA4VSO40DR/10L-PZB13G30 R902513482
REXROTH AA4VSO40DR/10L-PZB13K01 R902492410
REXROTH AA4VSO40DR/10L-PZB13K31 R902487013
REXROTH AA4VSO40DR/10L-PZB13N00 R902420561
REXROTH AA4VSO40DR/10R-PPB13N00E R902488346
REXROTH AA4VSO40DR/10R-PPB13N00E R902516255
REXROTH AA4VSO40DR/10R-PPB13N00E R902533656
REXROTH AA4VSO40DR/10R-PPB13N00E R902406543
REXROTH AA4VSO40DR/10R-PPB13N00E R902501024
REXROTH AA4VSO40DR/10R-PPB13N00E R902542300
REXROTH PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于REXROTH泵A4VSO250DR/30R-PPB-13N00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
REXROTH泵A4VSO系列A4VSO250DR/30R-PPB-13N00技術參數介紹
