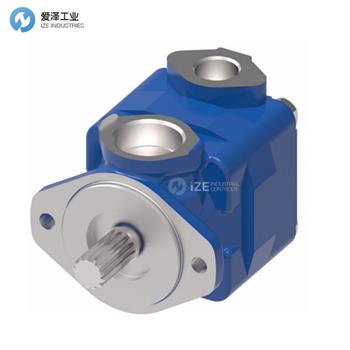

VICKERS泵V20-1B8B-1A11L技術參數
Model | V20 |
Mounting | 1 = 2 - Bolt Flange |
Inlet Port Connection | B = 1.25" BSP |
Delivery (USgpm at 1200 rpm) | 8 |
Outlet Port Connection | B = 750" BSP |
Shaft | 1 = Straight keyed |
Outlet Port Position (Viewed from cover end) | A = Opposite inlet |
Flow rate Setting for Flow control and Priority Valve Cover L/min (USgpm) | ﹣ |
Pressurer Setting for Flow control and Priority Valve Cover bar (psi) | ﹣ |
Shaft Rotation (Viewed from shaft end) | L= Turn left |
Geometric Displacement | 26.5 cm3/r (1.62 in3/r) |
Delivery at 1500 r/min & 7 bar (100 psi) | 37.85 L/min (10.00 USgpm) |
Maximum Pressure | 172 bar (2500 psi) |
Maximum Speed | 2800 rpm |
Minimum Speed | 650 rpm |
Weight | 7.3-8.2 kg (16-18 lb) |
VICKERS泵V10/V20系列描述
EATON Vickers V10和V20系列是定量平衡型液壓葉片泵。它們體積小巧，提供單泵和雙泵兩種型號，適用于工業和移動應用。
葉片設計具有磨損和間隙自補償功能，使泵的容積效率在整個使用壽命期間幾乎保持不變。（即使凸輪環和葉片尖端之間發生磨損，葉片始終會調整其軌道以與凸輪環接觸。）
液壓葉片泵在低速高壓運行下不會損壞，因為泵送作用直到轉速足夠高到足以使葉片脫落。由于采用液壓平衡設計，軸承僅承受外部載荷。因此，該泵的維護成本極低，使用壽命長。
入口或出口可以相對旋轉 90°，提供應用靈活性和易于安裝。
可選配流量控制和優先閥蓋，使該泵可用于更多應用。流量控制蓋可將流向主回路的流量限制在所需流量，同時將剩余流量轉移至油箱。優先閥蓋可保持流向主回路的恒定流量，同時將剩余流量轉移至次級回路。每個蓋板均配有一個溢流閥，用于限制主回路的最大壓力。
EATON Vickers V10 and V20 series are fixed displacement and balanced type hydraulic vane pumps. With compact sizes，they are available in single pumps and double pumps for both industrial and mobile application.
The vane design with self compensation for wear and clearances makes volumetric efficiency of pump nearly constant over the service life. (the vanes always adjust its orbit to contact with the cam ring, even though wear occurs between the cam ring and vane tips)
The hydraulic vane pump is not damaged at low speed and high pressure operation because pumping action does not start until the speed is high enough for the vane to throw out. With hydralcally balanced design, the bearing is externally loaded only. Therefore， the pump requires minimized maintenance with long service life.
The inlet or outlet ports can be rotated through increments of 90°in relation to each other, providing application flexibility and easy installation.
With optional flow control and priority valve covers, the pump can be used in more applications. The flow control cover can lirmit the flow to the primary circuit at the required flow rate, while diverts remaining flow to the tank. The priority valve cover maintains a constant flow to the primary circuit, while diverts remaining flow to the secondary circuit. Each cover comes with a relief valve to limits the maximum pressure of the primary circuit.

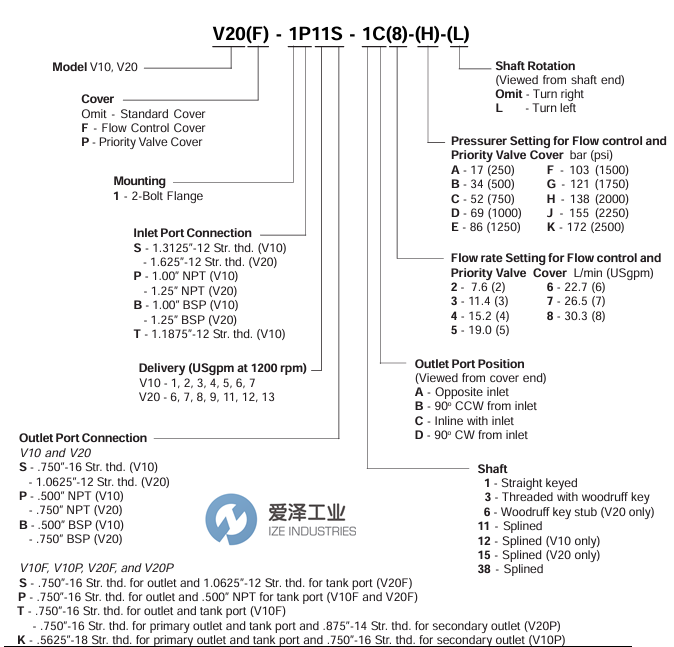

VICKERS泵V10/V20系列選型
VICKERS泵V10/V20系列其他常用型號：
VICKERS V10 1B 3B 1D 20
VICKERS V10 1B 4B 11A 20L
VICKERS V10 1P 1P 1C 20
VICKERS V10 1B 1B 11A 20
VICKERS V20 1E11S 23B 11
VICKERS V20 1P13S 1C 11
VICKERS V20 1B 11B 11C11
VICKERS V20 1B 11B 15 A11
VICKERS V20 1B 11B 1A 11
VICKERS V20 1B 8B 1A11
VICKERS V20-1B8B-1A11L
