DELTROL節流閥N系列技術參數
Max Operating Pressure (psi) | 2000 |
Max Operating Pressure (bar) | 138 |
Max Flow gpm | 22.5 |
Max Flow lpm | 85.2 |
Cv Factor | 1.24 |
Port Size | 1/2" |
Port Type | NPTF |
Material | Brass |
Knob | Key |
Recommended Operating Tempature Range (°F) | ‘-15 to +400’ |
Recommended Operating Tempature Range (°C) | ‘-26 to +204’ |
Maximum Operating Pressure (Non-Shock Service) | Brass: 2,000 psi (138 bar) |
Carbon Steel: 5,000 psi (345 bar) | |
Stainless Steel: 5,000 psi (345 bar) | |
Operating Temperature Range | -15° to +400° F (-26° to +204° C) |
Threads | NPTF, BSPT, SAE |
Materials | Body, Housing: Brass, Steel, Stainless Steel 303 |
Needle:Brass (Brass Valves) ，Stainless Steel 416 (Steel and Stainless Steel Valves) | |
O-Ring | Viton |
Back-Up Washer | Teflon |
Lock Nut | Brass, Steel, Stainless Steel 303 |
Knob | Aluminum |
Tamperproof Key | Steel |

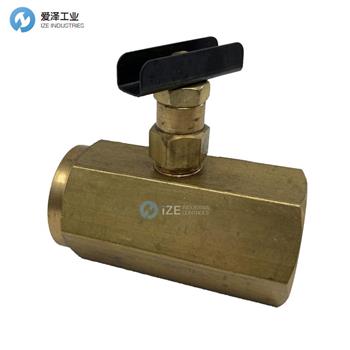

DELTROL節流閥N系列介紹
帶強制關閉功能的可變流量節流器。由于采用細螺紋和錐形針頭，可實現大范圍流量調節。鎖緊螺母可防止調節過程中出現意外變化。標配防篡改調節鍵；滾花旋鈕需額外付費。
特點：
流量調節范圍廣
鎖緊螺母以保持流量設定
正向關閉
A variable flow restrictor with positive shut-off. A wide range of flow adjustment is possible because of the fine thread and tapered needle. Unwanted changes in adjustment are prevented by a locknut. A tamperproof adjustment key is standard; a knurled knob is available at slight extra cost.
Features：
Wide range of flow adjustability
Lock Nut to maintain flow setting
Positive shut-off

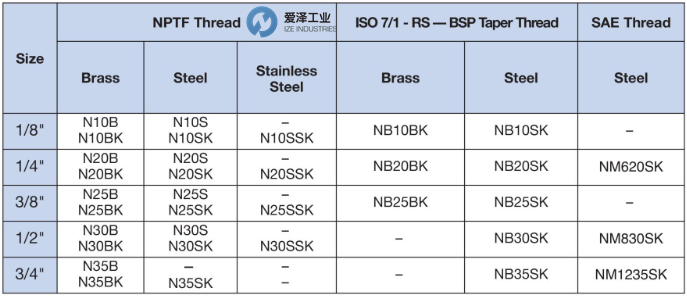

DELTROL節流閥N系列選型
DELTROL節流閥N系列其他常用型號：
DELTROL N30B
DELTROL N10B
DELTROL N10BK
DELTROL N20B
DELTROL N20BK
DELTROL N25B
DELTROL N25BK
DELTROL N30B
DELTROL N30BK
DELTROL N35B
