FILTERTECHNIK過濾機SFC-3000-240-45-FTBXXX-FTBXXX產品參數
Model | SFC-3000-240-45-FTBXXX |
Width | 600 mm |
Depth | 520 mm |
Height | 1000 mm |
Weight | 55 kg |
Frame | Mild stee |
Finish | Powder coat |
Voltage | 240 VAC |
Current | 4 Amps |
Power | 0.55 kW |
Overload | 4-6 Amp |
Starter contactor | Yes |
Pump | Gear |
Duty Cycle | Continuous |
Filtration | Dual 9” FTB housing |
Internal Bypass | Cracking 40 psi (2.8 bar) |
Filter Indicator | Dual Mechanical pop-up |
Pressure | 10 bar max |
Temperature | -5°C - 80°C |
Flow | 18 l/min |
Viscosity | 320 cst max |
Environment | IP55 |
Connections | 1” BSP 60° Cone (M) |
Inlet hose | 3m 1” single wire 1m lance, 250 micron strainer |
Outlet hose | 3m 1” single wire 1m lance |
FILTERTECHNIK過濾機SFC-3000系列介紹
SFC-3000 過濾系統 - 18, 25 或 45L/分鐘（1,080 或 2,700L/小時）
SFC-3000 濾油小車
SFC-3000 是一款堅固耐用的過濾系統，設計用于持續工業或間歇性油轉移使用，較其入門級產品 Sentry 更加適合重負荷工作。配有兩個高質量濾芯外殼，可選9英寸或14英寸，具有大容量的集污能力和分階段過濾選項。此外，它的流速有18、25或45L/min，并可靈活選擇濾芯，以達到 ISO 清潔度代碼 14/12/9-13/11/8。
使用 SFC-3000 第一階段去除大型污染物，第二階段去除更小顆粒。此分階段過程將減少需要更換濾芯的頻率。
雙濾結構也意味著您可以引入水分去除濾芯，實現固體和水污染物的單程去除。
SFC-3000 是一個多功能設備，適用于多個行業...
應用領域：
汽車工業
鋼鐵生產
機床
采礦/采石
注塑成型
航海
制造業等。
廣泛的濾芯消耗品可選：
Schroeder 9VZ1, 9 英寸絕對濾芯，1μm
Filtertechnik FTB-xx，絕對濾芯，可選3μm到25μm（僅9英寸）
Schroeder 14VZ，14 英寸絕對濾芯，可選1μm到25μm
Schroeder 9VM150/14VM150，清洗再使用濾芯，150μm
Schroeder 9VW/14VW，水分去除濾芯
請使用您的 Sentry 確保油液隨時清潔可用。
特點：
提供強勁的 18 L/min 或 45 L/min 流量選項，理想用于高粘度油
雙 9 英寸或 14 英寸濾芯外殼，支持連續過濾
裝配兩個濾芯外殼，支持分階段過濾
使用標準 110 或 240VAC 電源
離線污染控制
清潔度可達 ISO 14/12/9-13/11/8
堅固的框架帶有集成滴水盤
便攜，適合移動使用
全地形腳輪
優點：
堅固的設計
占用空間小
便于運輸
增加的集污能力
分階段過濾可能性，減少濾芯更換
靈活的濾芯選擇 – 提供水分去除選項
低成本的替換濾芯
提供多種微米級濾芯
簡單的濾芯更換
適合用過濾后的油補充系統、生產線末端沖洗和快速清除廢油
提供多種微米級的低成本消耗品
簡單的濾芯更換
SFC-3000 Filtration System- 18, 25 or 45L/min (1,080 or 2,700L/hr)

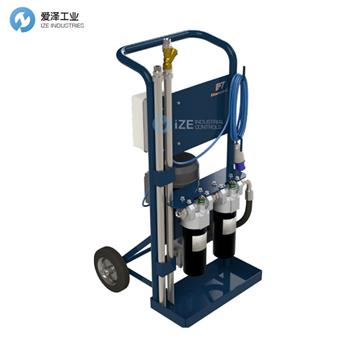

SFC-3000 trolley
The SFC-3000 is a robust filtration system designed for constant industrial or intermittent oil transfer use and more heavy duty than its entry-level counterpart the Sentry.
Fitted with two high-quality filter housings, available in either 9” or 14”, it boasts a large dirt holding capacity and the option of staged filtration. On top of this, it offers a flow rate of 18, 25 or 45L/min alongside flexible filter element selection to obtain a cleanliness level down to ISO cleanliness code 14/12/9-13/11/8.
Use the SFC-3000 to remove large contaminants in stage one and smaller particles in stage two. This staged process will reduce the frequency you need to change your elements.
The dual-filter design also means that you can introduce a water removal element, giving the option to remove both solid and water contamination in a single pass.
The SFC-3000 is a versatile unit for use in a multitude of industries...
Applications:
Automotive industry
Steel production
Machine tools
Mining/Quarrying
Injection Moulding
Marine
Manufacturing and many more.
Extensive Range of Filter Consumables Available:
Schroeder 9VZ1, 9” Absolute Filter Element, 1μm
Filtertechnik FTB-xx, Absolute Filter Element, available from 3μm to 25μm (9” only)
Schroeder 14VZ, 14” Absolute Filter Element, available from 1μm to 25μm
Schroeder 9VM150/14VM150, Re-cleanable Filter Element, 150μm
Schroeder 9VW/14VW, Water Removal Element
Use your Sentry to ensure that oil will be clean and ready for use at any time.
Features:
Powerful flow rate options of 18 L/min or 45 L/min Ideal for use with high viscosity oils
Dual 9” or 14” filter housings for continuous filtration
Two filter housings fitted offering the possibility of staged filtration
Uses standard 110 or 240VAC mains electric
Off-line contamination control
Cleanliness level down to ISO cleanliness code 14/12/9-13/11/8
Rugged frame with integral drip tray
Portable, perfect for mobile use
All-terrain castor wheels
Benefits:
Rugged design
Small footprint
Easy to transport
Increased dirt holding capacity
Staged filtration possibilities to reduce element change out
Flexible filter element selection – water removal option available
Low-cost replacement cartridges
A range of element micron ratings available
Easy element changeover
Perfect for replenishing systems with filtered oil, end of production line flushing and emptying waste oil quickly
Low-cost consumables available in a range of micron ratings
Simple element changeover
