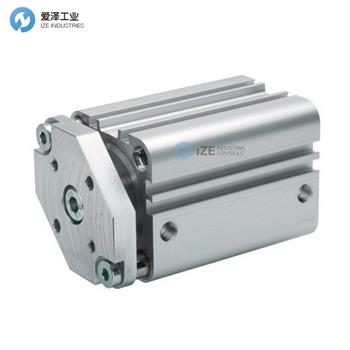

AVENTICS氣缸0822397609技術參數
Specifications | |
Standards | NFE 49004 |
Piston ? | 80 mm |
Stroke | 80 mm |
Functional principle | Double-acting |
Cushioning | Elastic cushioning |
Magnetic piston | Piston with magnet |
Environmental requirements | Industry standard, ATEX optional |
Piston rod | non-rotating, with front plate |
Scraper | Standard industrial scraper |
Pressure for determining piston forces | 6,3 bar |
Retracting piston force | 2969 N |
Extracting piston force | 3167 N |
Min. ambient temperature | -20 °C |
Max. ambient temperature | 80 °C |
Working pressure min. | 0.6 bar |
Working pressure max | 10 bar |
Ports | G 1/8 |
Impact energy | 1.8 J |
Stroke max. | 300 mm |
Medium | Compressed air |
Min. medium temperature | -20 °C |
Max. medium temperature | 80 °C |
Max. particle size | 50 μm |
Oil content of compressed air min. | 0 mg/m3 |
Oil content of compressed air max. | 5 mg/m3 |
AVENTICS氣缸其他常用型號：
AVENTICS 0822390000
AVENTICS 0822390001
AVENTICS 0822390002
AVENTICS 0822390003
AVENTICS 0822390004
AVENTICS 0822390005
AVENTICS 0822390006
AVENTICS 0822390007
AVENTICS 0822390008
AVENTICS 0822390200
AVENTICS 0822392001
AVENTICS 0822397609
AVENTICS 0822392003
AVENTICS 0822392004
AVENTICS 0822392005
AVENTICS 0822392006
AVENTICS 0822392007
AVENTICS 0822392008
AVENTICS 0822392200
AVENTICS cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS氣缸0822397609的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
