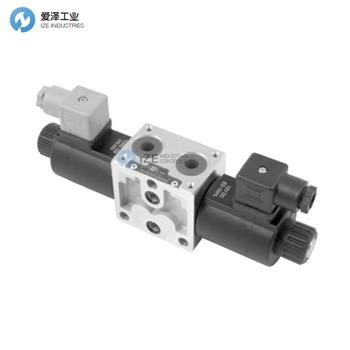

REXROTH閥L8011B201000000HA規格描述
Family | L： Directional Valve elements ED |
Type | 8： Size 6 |
Confi guration | 0：Standard |
Coil type | 11：C45 |
Spool variants1) | B201： 4/3 operated on both sides a and b |
Voltage supply | 00：Without coil |
Electric connections | 00：Without coil |
Ports | 0：G 3/8 DIN 3852 |
Options | HA |
REXROTH閥L8_11系列產品介紹及介紹
通用規格
閥芯采用電磁控制的方向型柱塞閥。
控制柱塞由可拆卸線圈的電磁鐵驅動。
在斷電狀態下，控制柱塞由回位彈簧保持在中央位置。
適用于直流線圈的濕針管，帶推桿用于機械干預；表面鍍鎳增強抗腐蝕能力。
線圈可以繞管子旋轉360°；可通過帶整流器（RAC）的特殊連接器用交流電激活。
可選配手動干預裝置（按鈕式或螺絲式）。
規格參數
尺寸：Size 6
系列：Series 00
最大工作壓力：310巴（4500磅/平方英寸）
最大流量：50升/分鐘（13.2加侖/分鐘）
端口連接：G 3/8、SAE6、G 1/2、SAE8
General specifi cations
Valve elements with solenoid operated directional spool.
Control spools operated by solenoids with removable coils.
In the de-energized condition, the control spool is held in the central position by return springs.
Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifi er (RAC).
Manual override (push-button or screw type) available as option.
Size 6
Series 00
Maximum operating pressure 310 bar (4500 psi)
Maximum fl ow 50 l/min (13.2 gpm)
Port connections G 3/8 - SAE6 - G 1/2 - SAE8
REXROTH閥其他常用型號：
REXROTH L8011B201000000HA R933008684
REXROTH L8011B201000020HA R933008607
REXROTH L8011E201000020 R933002302
REXROTH L8011B201OV0120HA
REXROTH L8011A201000020 R933007083
REXROTH L8011E201000000 R933002301
REXROTH L8011B201000020 R933002273
REXROTH L8011B2EA000000
REXROTH L8011X301OB0120 R933003042
REXROTH L8011C201OC0100 R933002296
REXROTH L8011B201000000 R933002272
REXROTH OIL CONTROL Valve block NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥L8011B201000000HA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
