COPELAND過濾器EK-305S技術參數
Specifications | |
Access Type | None |
California Prop 65 Cancer or Reproductive Harm | Yes |
Capacity [in3] | 30 |
Country of Origin | MX |
Desiccant Blend | Blend optimized for high water capacity and acid capacity |
Filtration | 20 microns |
HTS | 8421.29.0065 |
Inlet Connection | 5/8" ODF |
Maximum Working Pressure MWP [psig] | 680 |
Model Number | EK 305S |
Outlet Connection | 5/8" ODF |
UL/CUL File Number | SA3124 |
Unit Size | 30 Cubic Inches |
UPC-12 | 681344482150 |
Warranty | 1 Year |

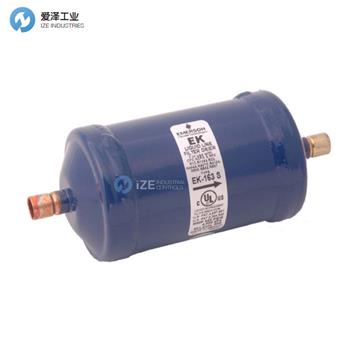

COPELAND過濾器EK系列產品介紹
EK液體線過濾干燥器是一款優質的壓縮珠濾干器，配備20微米的出水墊，以實現最大過濾效果。EK是適用于CFC、HCFC和HFC制冷劑的優質通用替代液體線過濾干燥器，包括R-12、R-134a、R-22、R-404A、R-407C、R-410A、R-500、R-502和R-507。
特點：
優先過濾，以更有效地利用干燥劑的表面積
高濕氣和酸的去除能力
堅固的銅連接
防腐蝕環氧粉末涂層
適用于與Copeland?壓縮機配合使用的POE油
耐沖擊的鋼殼結構
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.
Features
Filtration first for more effective use of surface area of desiccant
High moisture and acid removal capacity
Solid copper connections
Corrosion resistant epoxy powder paint finish
Approved for POE oils with Copeland? compressors
Shock resistant steel shell construction
COPELAND過濾器其他常用型號：
COPELAND EK 305
COPELAND EK 305S
COPELAND EK 306
COPELAND EK 306S
COPELAND EK 307S
COPELAND EK 309S
COPELAND EK 413
COPELAND EK 414
COPELAND EK 414S
COPELAND EK 415
COPELAND EK 415S
COPELAND EK 417S
COPELAND EK 419S
COPELAND EK 757S
COPELAND EK 759S
