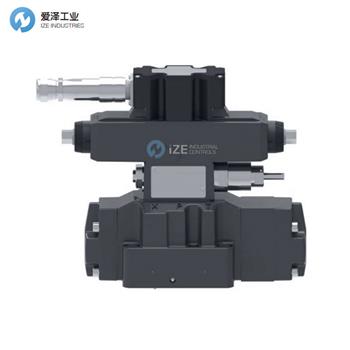

VICKERS閥KBDG5V-7-2C180N100-M1-PE7-H1-10技術參數
Valve Type | [K] Proportional valve |
Integral amplifier | [B] Integral Amplifier "B" Series |
Control Type | [D] Directional valve |
Mounting | [G] Subplate mounted |
Operation | [5] Pilot operated |
Pressure rating | [V] Pressure rating on P, A & B ports |
Mounting Interface Size (ISO 4401) | [7] NFPA D07, CETOP 7 |
Spool Type, flow rating and metering | [2C180N100] |
Pilot Supply | [M1] |
Electrical Connection | [PE7] 7 pin connector with plug supplied |
Coil Identification | [H1] 24V |
Design Number | [10] 10 Series |
VICKERS閥KBDG5V系列介紹
Vickers KBDG5V-5/7/8/10 是電磁操作方向控制、非反饋型比例閥。
這些是兩級比例方向控制閥，其中主級閥芯根據整體安裝的比例、電磁操作、減壓閥的輸出定位。主閥芯行程的方向取決于先導閥的兩個電磁閥中的哪一個通電，行程量取決于電磁閥的電流輸入。
在主閥芯的任何中間位置，作用在閥芯端的受控、減小的先導壓力與相對的定心彈簧以及流動力作用之間存在力平衡。主級閥芯位置沒有電反饋。
該系列閥門為在每個操作周期中具有重復負載條件的應用提供了有效且經濟的解決方案，例如塑料成型機中的模具關閉/打開。
Vickers KBDG5V-5/7/8/10 are solenoid operated directional control, non-feedback type proportional valves.
These are two-stage proportional directional control valves in which the main-stage spool is positioned according to the output from an integrally mounted proportional, solenoid-operated, pressure-reducing valve. Direction of main-spool travel depends upon which of the two solenoids of the pilot
Valve is energized and the amount of travel is dependent upon the current input to the solenoid.
At any intermediate position of the main spool, a force balance exists between the controlled, reduced pilot pressure acting on the spool end and the opposing centering spring, plus the action of flow forces. There is no electrical feedback of the main-stage spool position.
This range of valves offers effective and economic solutions for applications having repetitive load conditions throughout each operating cycle, e.g. mold closure /opening in plastics molding machinery.
VICKERS閥KBDG5V系列其他常用型號：
VICKERS KBDG5V-5-2C90N-M2-PE7-H1-10
VICKERS KBDG5V-5-2C90N-X-H-M1-PE7-H1-10
VICKERS KBDG4V-5-2C70N-Z-M2-PE7-H7-10
VICKERS KBDG5V-8-33C330N-T-M2-PH7-H1-10
VICKERS KBDG5V-5-2C90N-T-M1-PE7-H1-10
VICKERS KBDG5V-8-2C330N-X-T-H-M1-PE7-H1-10
VICKERS KBDG5V-7-2C180N100-M1-PE7-H1-10
VICKERS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS閥KBDG5V-7-2C180N100-M1-PE7-H1-10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
