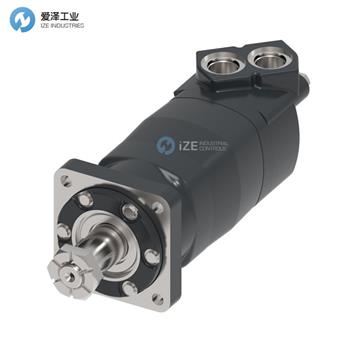

Motor Series

6000 Series

Valve system

Disc valve with valve drive

Orbital gearwheel set type

Geroler

Motor size

625

Geometric displacement [cm3/r [in3/r]]

624.2 [38.09]

Motor type

Standard

Motor function

Standard

Mounting flange type

4 Bolt - Square

Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]

127.0 x 12.7, 162.0, 14.4 [5.00 x 0.50, 6.38, 0.57] (SAE CC)

Shaft type

Splined

Shaft dimension

Dia. 1 1/2 inch, 17T, 3/8 - 16 UNC-2B thread in shaft end

Shaft Key

n/a

Main port thread type

BSP

Main port style

Sideport - staggered

Main port dimension

G 1

Drain Port Dimension

G 1/4

Brake Release Port Dimension

n/a

Painted

Yes

Paint information

Primer, Black, Low gloss

Special features hardware

Standard

Special Features Assembly

Standard

Dust seal

Standard

Shaft Seal

NBR - Standard

Seal Kit

No data available

Front bearing type

Tapered roller bearing

Rear bearing type

Tapered roller bearing

Orbital gearwheel set

Standard

Check valve function

Yes

Hydraulic valve function

None

Sensor

None

Packaging

Single pack

Name Tag

Danfoss name tag

Design code

6

Brand

Danfoss

Sub brand

Char-Lynn
