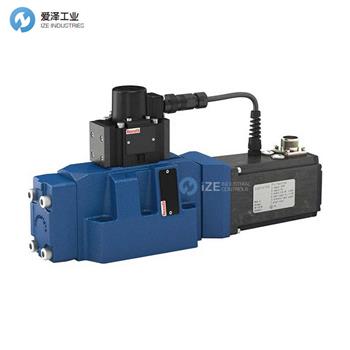

REXROTH閥4WRDE16V220L-6X/MXY/24A5 R901435604技術參數
Connection diagram | ISO 4401-07-07-0-05 |
Product family | 4WRDE |
Operating pressure, max. [bar] | 350 |
Max. flow [l/min] | 460 |
Spool symbol | Symbol V |
Type of connection | Subplate mounting |
Nominal flow [l/min] | 220 |
Size | 16 |
Type of actuation | Electrical with on-board electronics |
Number of ports | 4 |
Number of switching positions | 3 |
Supply voltage | 24 VDC |
Electrical connector | Connector, 7-pole (6 + PE) |
Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
Connectivity | Analog, command value 鹵10 V |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
Seals | NBR |
Weight [kg] | 10.5 |
REXROTH閥4WRDE系列產品介紹
高性能工業液壓閥，根據液壓符號可靠地控制油流方向，通過內部活塞位置反饋實現高精度。
? 滑閥
? 先導式
? 線性
? 外部先導供油，外部先導回油
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol, high accuracy through internal piston position feedback.
? Spool valve
? Pilot-operated
? Linear
? External pilot oil supply, external pilot oil return
REXROTH閥4WRDE系列其他常用型號：
REXROTH 4WRDE10V1-100L-6X/MXY/24A5 R901469206
REXROTH 4WRDE10V1-100L-6X/MXYWG/24A5 R901493670
REXROTH 4WRDE10V1-50L-6X/MXY/24A5 R901506192
REXROTH 4WRDE10V100L-6X/MXY/24A5 R901435602
REXROTH 4WRDE10V50L-6X/MXY/24A5 R901454638
REXROTH 4WRDE16V200L-52/6L24K9/MR R900957581
REXROTH 4WRDE16E220L-6X/MXTWG/24A5 R901497235
REXROTH 4WRDE16V1-150L-6X/MXY/24A5 R901481789
REXROTH 4WRDE16V1-220L-6X/MXY/24A5 R901454650
REXROTH 4WRDE16V1-220L-6X/VXY/24F1 R901479865
REXROTH 4WRDE16V150L-6X/MPTWG/24A5 R901504054
REXROTH 4WRDE16V220L-6X/MXY/24A5 R90143560
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥4WRDE16V220L-6X/MXY/24A5 R901435604的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
