DUPLOMATIC放大器EDC-1系列技術參數
Power supply V DC | 10 ÷ 30 - ripple included |
Required power W | min 20 - max 40 (see point 2.1) |
Output current mA | min 800 - max 2600 (see point 1) |
Power supply electrical protections | overload over 33 V |
Output electrical protections | short-circuit |
Analogue electrical protections | up to 30 V DC |
Available reference signals | 0 ÷ 10 V (input impedance 100 kΩ) |
Connector type on PLC side | EN 175301-803 (ex DIN 43650) or M12 4 pin |
Electromagnetic compatibility (EMC): | - EMISSIONS IEC EN 61000-6-4 according to 2014/30/EU standards |
Protection to atmospheric agents (IEC EN 60529) | IP65/IP67 |
Operating temperature range °C | -20 / +70 |
Mass kg | 0,10 |
DUPLOMATIC放大器EDC-1系列介紹

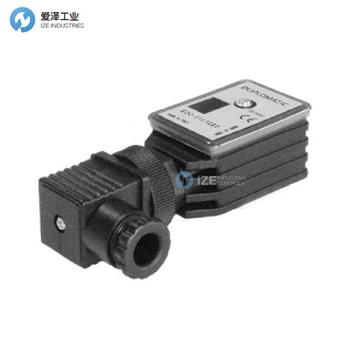

EDC-1 是一款用于控制開環比例閥的數字放大器，可在線圈的 DIN 和 DIN 或 M12 電氣連接側進行插入式安裝。
它提供與參考信號成比例的電流，不受溫度變化和負載阻抗的影響，滿量程 2600 mA 的分辨率為 1%。通過 PWM 級為螺線管供電可減少閥門滯后并提高控制精度。
EDC-1 系列提供不同的電流上限和開關頻率 (PWM) 設置，具體取決于要控制的閥門類型。參數調整可通過按鈕和顯示屏進行，或通過裝有 EDCPC 軟件的筆記本電腦并連接到設備內的 RS232 插座進行。
The EDC-1 is a digital amplifier for controlling open-loop proportional valves, with plug-in mounting on the coil's DIN and DIN or M12 electrical connection side.
It delivers a current proportional to the reference signal and independent to temperature variations and load impedance, with a resolution of 1% on full scale 2600 mA. Powering the solenoid via a PWM stage reduces valve hysteresis and improves control accuracy.
The EDC-1 range offers different maximum current and switching frequency (PWM) settings, depending on the type of valve to be controlled. Parameter adjustment is via push-buttons and display, or via laptop PC with EDCPC software and connection to the RS232 socket inside the device.

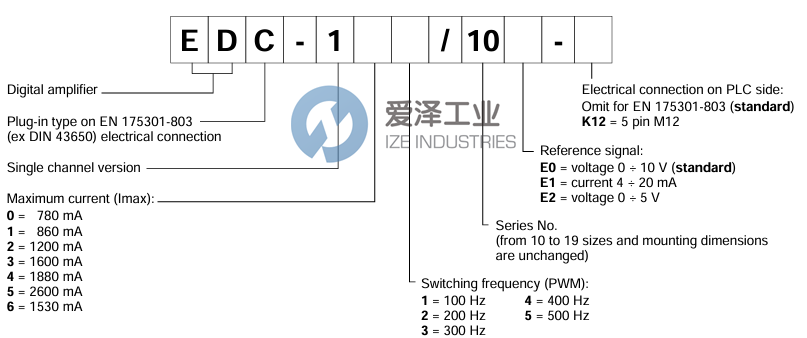

DUPLOMATIC放大器EDC-1系列選型
DUPLOMATIC放大器EDC-1系列其他常用型號：
DUPLOMATIC EDC-110/10E0
DUPLOMATIC EDC-111/10E0
DUPLOMATIC EDC-112/10E0
DUPLOMATIC EDC-122/10E0
DUPLOMATIC EDC-131/10E1
DUPLOMATIC DIGITAL AMPLIFIER NEW + ORIGINAL+ ONE YEAR WARRANTY
