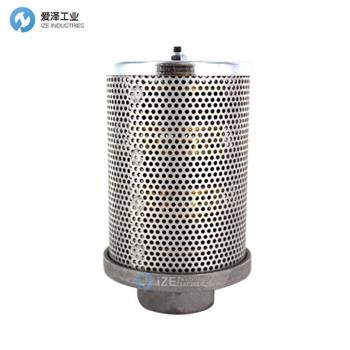

SCHROEDER過濾器7627950 SKB-1技術規格
Specifications | |
Short Description | Magnetic Suction Strainer |
Flow | 15 gpm |
Type | Magnetic Suction Strainer |
Weight | 0.78 kg |
Size | Fits on Pipe Size 1 in. |
Material | 0.079 in. Diameter Perforations |
Mounting Type | In Tank |
Inlet/Outlet Port Type | Pipe Thread |
Port Size | 1 in. |
Includes | The standard outer screen has adequate open area (.079 inch diameter perforations) to eliminate the possibility of pump starvation. All models are also available with a pleated mesh screen by adding SS20 to the model number. (Example SKB-1-SS20.) |
Dimensions | |
Length | 5.25 in |
Diameter | 2.3 in |
SCHROEDER過濾器7627950 SKB-1介紹
使用 Schroeder 的磁性吸入分離器，可在不使泵缺油的情況下提供吸入管線過濾。它們?yōu)楸锰峁┆?dú)特的保護，使其免受各種尺寸的鐵質顆粒的侵害，其中一些顆粒有可能在一次通過時就毀壞泵。大型陶瓷磁鐵沿著分離器的長度間隔排列。進入泵的所有液壓油都必須以低速通過強大的磁場。該磁場可捕獲大量微鐵質顆粒。
With the use of Schroeder's Magnetic Suction Separators, suction line filtration is provided without starving the pump. They offer unique protection for pumps from all sizes of ferrous particles, some of which have the potential of destroying a pump in a single pass. Large ceramic magnets are spaced along the length of the separator. All hydraulic fluid entering the pump must move at low velocity through a powerful magnetic field. This field traps large quantities of micronic ferrous particles.
SCHROEDER過濾器其他常用型號：
SCHROEDER 7622646 SKB-1.5-G407-1
SCHROEDER 7627953 SKB-1-SS20
SCHROEDER 7627950 SKB-1
SCHROEDER 7622644 SKB-1.25-SS20
SCHROEDER 7622645 SKB-1.25-SS50
SCHROEDER 7627951 SKB-1.25
SCHROEDER 7622647 SKB-1.5-SS20
SCHROEDER 7627952 SKB-1.5
SCHROEDER 7622648 SKB-2-G417
SCHROEDER 7627955 SKB-2-SS20
SCHROEDER 7622649 SKB-2-SS50
SCHROEDER FILTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHROEDER過濾器7627950 SKB-1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCHROEDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
SCHROEDER過濾器7627950 SKB-1技術參數介紹
