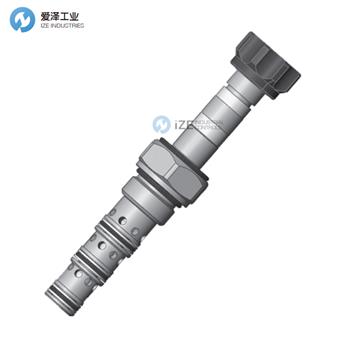

REXROTH OIL CONTROL閥VED-8I-42系列技術參數
Technical data | |
General | |
Weight | 0.13 kg (0.29 lbs) |
Installation orientation | Any |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) - coil 20W |
Hydraulic | |
Max. operating pressure | 210 bar (3045 psi) |
Max. flow | 10 l/min. (3 gpm) |
Max. internal leakage | 40 cm3/min. (2.4 cu.in/min.) |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Filtration | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Cavity | CA-08A-4N |
Seal kit | code RG08A4010530100 |
Seal kit coil | code RG12I1PNBR7010 |

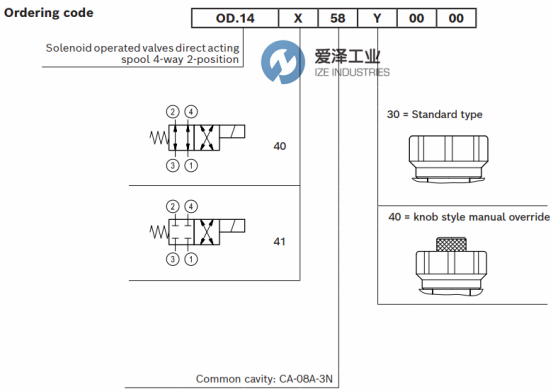

REXROTH OIL CONTROL閥VED-8I-42系列選型

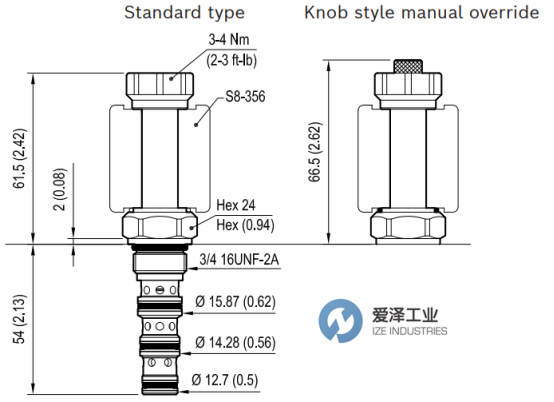

REXROTH OIL CONTROL閥VED-8I-42系列技術尺寸
REXROTH OIL CONTROL閥VED-8I-42系列其他常用型號：
REXROTH OIL CONTROL OD144058300000 R901113693
REXROTH OIL CONTROL OD144058400000 R901126899
REXROTH OIL CONTROL OD144158300000 R901126903
REXROTH OIL CONTROL OD144158400000 R901126905
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD144058400000 R901126899的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
REXROTH OIL CONTROL閥OD144058400000 R901126899技術數據
