REXROTH OIL CONTROL閥VEDT-08A-A-16-NC系列技術參數
General | |
Weight kg (lbs) | 0.22 (0.48) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | |
Max. operating pressure bar (psi) | 250 (3600) |
Max. flow l/min.(gpm) | 25 (7) |
Max. internal leakage drops/min. | 20 |
Fluid temperature range °C (°F) | -20 to 80 (-4 to 176) |
Response time ms. | 40-60 at nominal flow (oil at 46 cSt) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque Nm (ft-lbs) | 34-41 (25-30) |
Recommended degree of fluid contamination | Nominal value max. 10μm(NAS 8) |
Cavity | CA-08A-2N see RE 18325-70 |
Lines bodies and standard assemblies | Please refer to section“Hydaulic integrated circuit” or consult factory |
Seal kit code | RG08A2010530100 |
Seal kit coil code | RG16A1PMVQ0010 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S7 |
Power consumption W | 30 |
Nominal voltage coil 30W | -10% +10% |

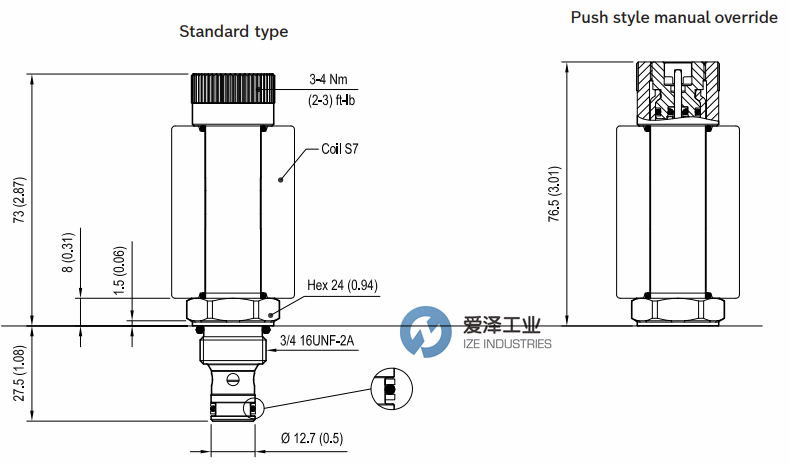

REXROTH OIL CONTROL閥VEDT-08A-A-16-NC系列技術尺寸

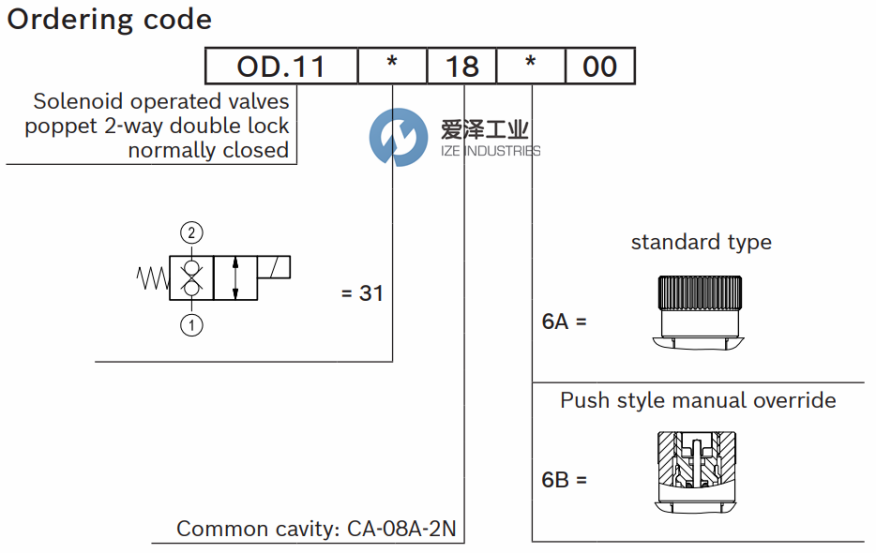

REXROTH OIL CONTROL閥VEDT-08A-A-16-NC系列選型
REXROTH OIL CONTROL閥VEDT-08A-A-16-NC系列其他常用型號：
REXROTH OIL CONTROL OD1131186A0000 R934003624
REXROTH OIL CONTROL OD1131186B0000 R934003625
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
有關REXROTH OIL CONTROL閥OD1131186B0000 R934003625更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.www.agcjj.cn.
REXROTH OIL CONTROL閥OD1131186B0000 R934003625技術參數
