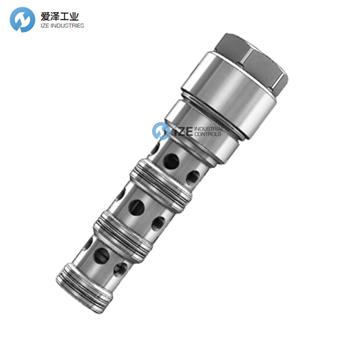

REXROTH OIL CONTROL閥04.84.09.00.27-Z規格描述
Max. operating pressure | 350 bar (5000 psi) |
Max. inlet flow | 160 l/min. (42 gpm) |
Max. priority flow | 140 l/min. (37 gpm) |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 108- 122 Nm (80 - 90 ft-lbs) |
Weight | 0.5 kg (1.1 lbs) |
Cavity | CA-16A-4N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit1) | Code: RG16A4010530100 |
Fluids | Mineral-based or synthetics with lubricating properties |
at viscosities of 10 to 500 mm2/s (cSt) | |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet 18350-50 |
1) Only external seals for 10 valves

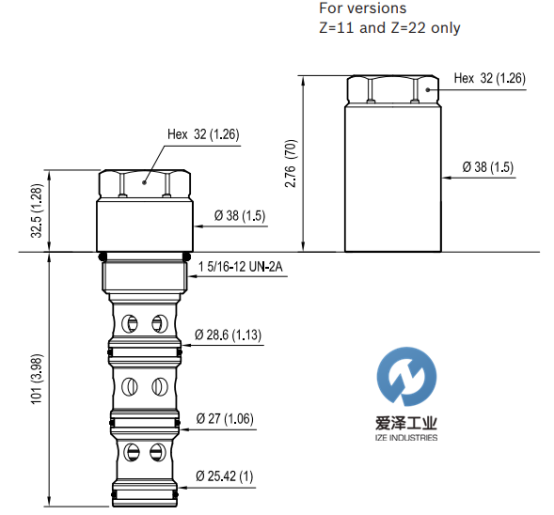

REXROTH OIL CONTROL閥04.84.09.00.27-Z外觀尺寸圖

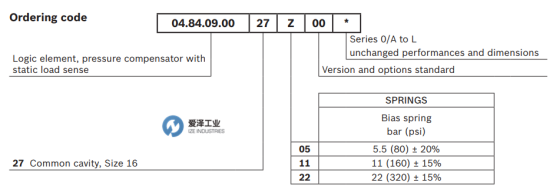

REXROTH OIL CONTROL閥04.84.09.00.27-Z型號解析
REXROTH OIL CONTROL閥VRLA-16A-S系列其他常用型號：
REXROTH OIL CONTROL 048409002705000 R930001078
REXROTH OIL CONTROL 048409002711000 R930001079
REXROTH OIL CONTROL 048409002722000 R930001080
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥048409002722000 R930001080的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
REXROTH OIL CONTROL閥04.84.09.00.27-Z 048409002722000 規格描述
