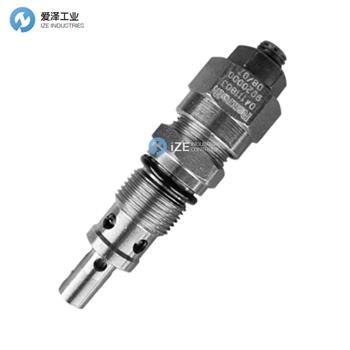

REXROTH OIL CONTROL閥04.11.18-X-99-Z規格描述
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 140 bar (2000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 45 - 50 Nm (33 - 37 ft-lbs) |
Weight2) | 0.17 kg (0.38 lbs) |
Special cavity | 008 (see data sheet 18325-75) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit3) | Code: RG0008010000100 |
Fluids | Mineral-based or synthetics with lubricating properties |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |
1) At 80% of pressure setting
2) Standard version 03 type
3) Only external seals for 10 valves

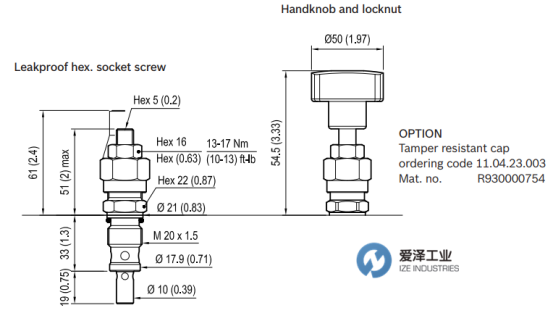

REXROTH OIL CONTROL閥04.11.18-X-99-Z外觀尺寸圖

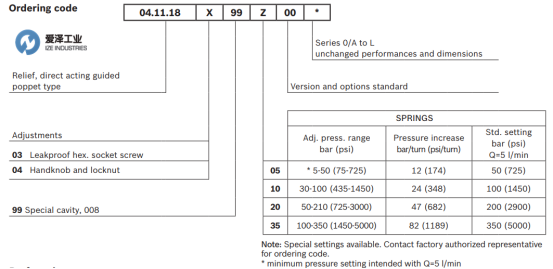

REXROTH OIL CONTROL閥04.11.18-X-99-Z型號解析
REXROTH OIL CONTROL閥VS-30系列其他常用型號：
REXROTH OIL CONTROL 041118049905000 R930000148
REXROTH OIL CONTROL 041118049910000 R930000149
REXROTH OIL CONTROL 041118049920000 R901127942
REXROTH OIL CONTROL 041118049935000 R930000151
REXROTH OIL CONTROL 041118039905000 R901113613
REXROTH OIL CONTROL 041118039910000 R901113614
REXROTH OIL CONTROL 041118039920000 R901226876
REXROTH OIL CONTROL 041118039935000 R901113617
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
