REXROTH閥VBSO-DE系列技術參數
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Weight | 1.4 kg (3.1 lbs) |
Manifold material | Aluminium |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Relief setting: | at least 1.3 times the highest expected load. |
REXROTH閥VBSO-DE系列介紹
它通過調節執行器通過端口C1和C2的流入和流出來提供負載的靜態和動態控制。該閥塊包括2個部分，每個部分由一個止回閥和一個在相反管路中的壓力輔助的溢流閥先導閥組成：止回閥部分允許自由流入執行機構，然后保持負載反向運動。 通過在管路兩端施加先導壓力，溢流閥的壓力設定會按規定比例成比例減小，直到打開并允許可逆流。V1或V2處的背壓會加到所有功能的壓力設置中。
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections,each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Back-pressure at V1 or V2 is additive to the pressure setting in all functions.

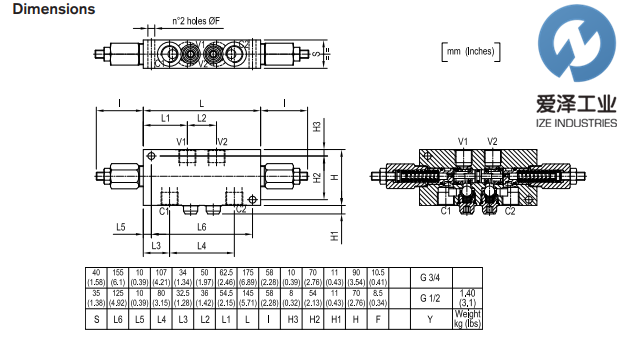

REXROTH閥VBSO-DE系列技術尺寸圖

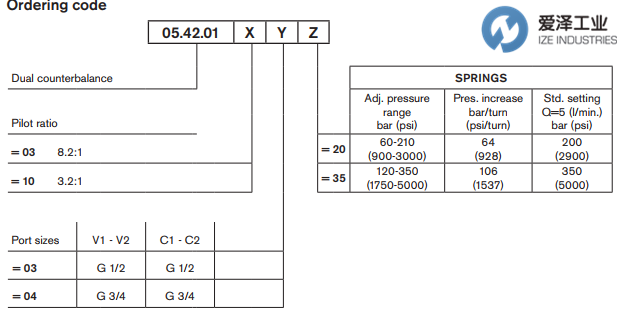

REXROTH閥VBSO-DE系列選型介紹
REXROTH閥VBSO-DE系列其他常用型號：
REXROTH 054201030320000 R930001758
REXROTH 05420103033500A R930001761
REXROTH 054201030420000 R930001771
REXROTH 05420103043500A R930001773
REXROTH 054201100320000 R930005704
REXROTH 05420110033500A R930001776
REXROTH 054201100420000 R930000981
REXROTH 05420110043500A R930001781
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥054201030320000 R930001758的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
REXROTH閥054201030320000 R930001758技術參數及選型
