REXROTH OIL CONTROL閥VED-10A-32系列技術參數
General | |
Weight kg (lbs) | 0.22 (0.49) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | —30 to 60 (-22 to 140) - coil 30W |
Hydraulic | |
Max. operating pressure port 2-3 bar (psi) | 280 (4000) |
Max. operating pressure port 1bar (psi) | 210 (3000) |
Max. flow l/min. (gpm) | 20 (6) |
Max. internal leakage (*) cm3/min. (cu.in./min.) | 80 (5) |
Fluid temperature range °C (°F) | —20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque Nm (ft-lbs) | 44-56 (33-41) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Cavity | CA-10A-3N see RE 18325-70 |
Seal kit | code RG10A3010530100 |
Seal kit coil | code RG16A1PMVQ0010 |
Other technical data | See data sheet RE 18350-50 |
(*) Measured at 210 bar (3000 psi) (oil at 46 cSt) | |
Electrical | |
Type of voltage | DC voltage |
Coil type | S7 |
Supply voltage | See data sheet RE 18325-90 |
Power consumption W | 30 |
Duty cycle coil % | 100 see RE 18325-90 |
Type of protection | See data sheet RE 18325-90 |
Nominal voltage coil 30W | —10% + 10% |
Note: Coils must be ordered separately | |

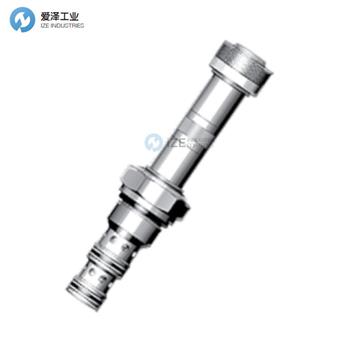

REXROTH OIL CONTROL閥VED-10A-32系列介紹
電磁閥直動閥芯3通2位
Solenoid operated valves direct acting spool 3-way 2-position

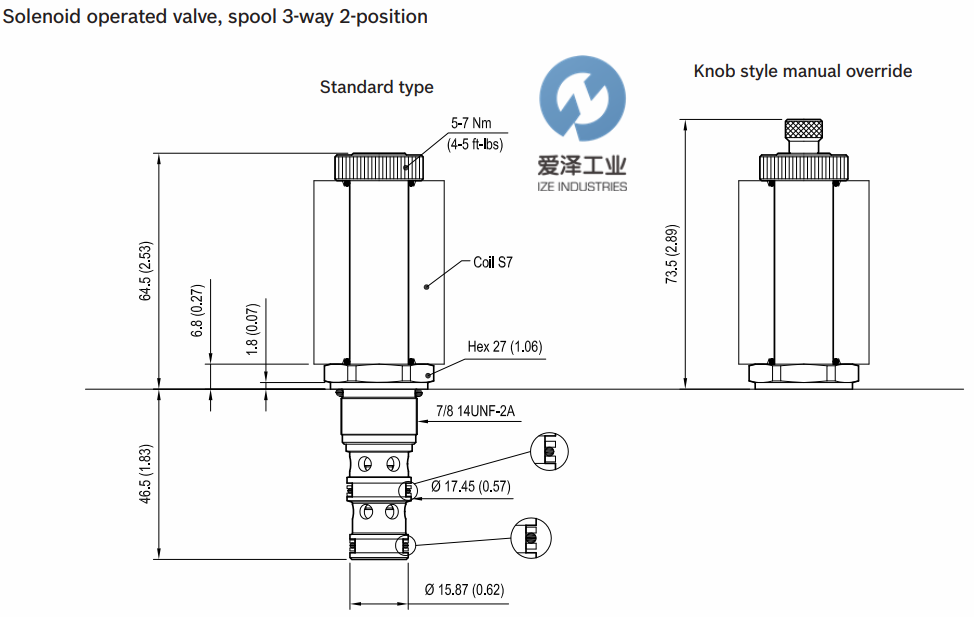

REXROTH OIL CONTROL閥VED-10A-32系列尺寸圖

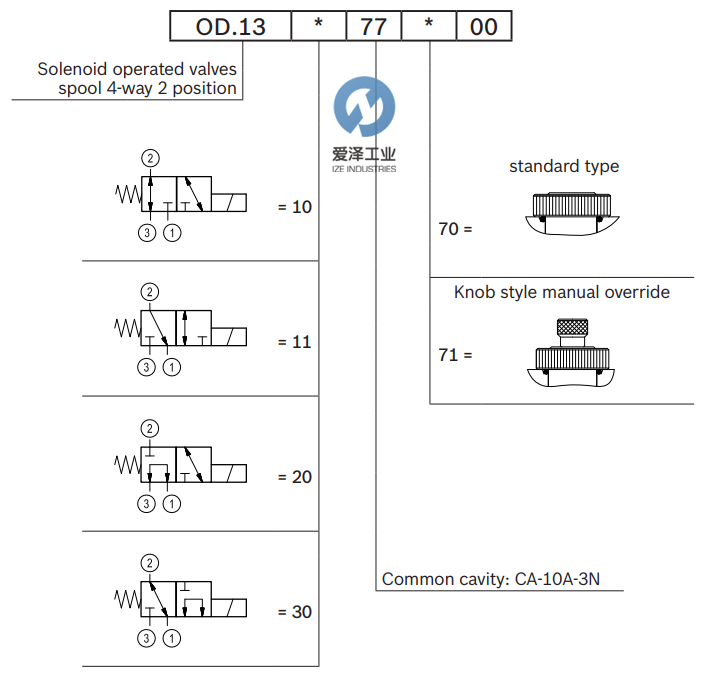

REXROTH OIL CONTROL閥VED-10A-32系列選型
REXROTH OIL CONTROL閥VED-10A-32系列其他常用型號：
REXROTH OIL CONTROL OD131077700000 R901113686
REXROTH OIL CONTROL OD131077710000 R901113687
REXROTH OIL CONTROL OD131177700000 R901125116
REXROTH OIL CONTROL OD131177710000 R901126890
REXROTH OIL CONTROL OD132077700000 R901113690
REXROTH OIL CONTROL OD132077710000 R901113692
REXROTH OIL CONTROL OD133077700000 R901115704
REXROTH OIL CONTROL OD133077710000 R901126898
