REXROTH OIL CONTROL閥VAA-B-SICN-ST-VF-250系列技術參數
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Max. flow | 200 l/min. (53 gpm) |
Weight | 10.9 kg (24 psi) |
Manifold material | Aluminium |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Relief setting: at least 1.3 times the highest expected load. |

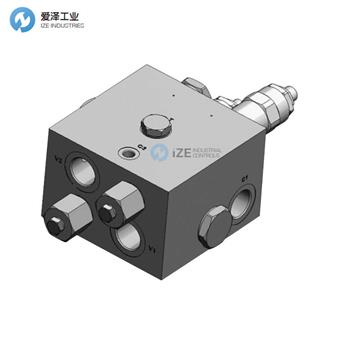

REXROTH OIL CONTROL閥VAA-B-SICN-ST-VF-250系列介紹
通過調節C1和C2端口液壓電機的流量和壓力IN和OUT，提供靜態和動態運動控制。
當安裝在靠近電機時，當軟管出現故障時，它可以阻止失控。檢查部分允許自由流入電機并防止反向運動；當施加先導壓力時，先導輔助安全閥控制運動。止回閥系統允許跨線釋放；可選補給口(T)允許補償任何體積變化。通過端口C3，穿梭閥將V1或V2壓力導向彈簧驅動制動器以釋放制動器。
It provides static and dynamic motion control by regulating flow and pressure IN and OUT of the hydraulic motor at ports C1 and C2.
When installed close to the motor, it can stop runaway in case of hose failure. The check sections allow free flow into the motor and prevent reverse movement; the pilot assisted relief valves control the movement when pilot pressure is applied. A system of check valves allows cross line relief; an optional make-up port (T) allows to compensate for any volume change. Through port C3, a shuttle valve directs either V1 or V2 pressure to the spring actuated brake for brake releasing.

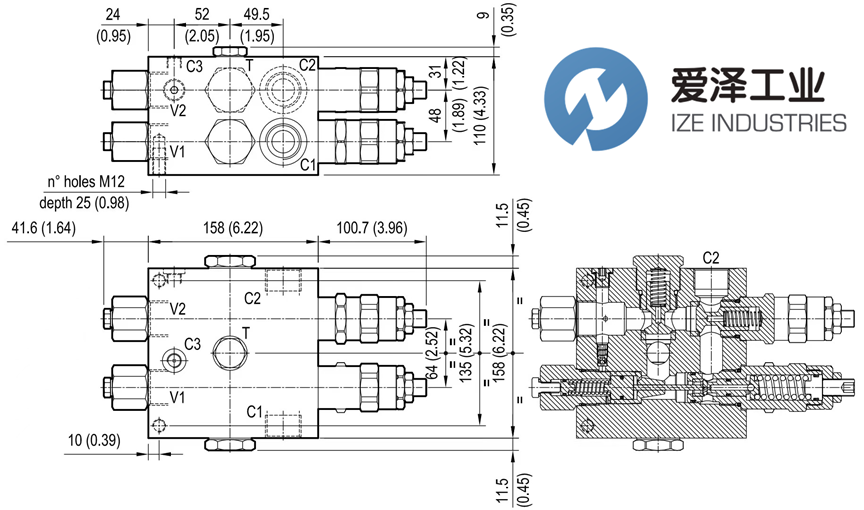

REXROTH OIL CONTROL閥VAA-B-SICN-ST-VF-250系列技術尺寸

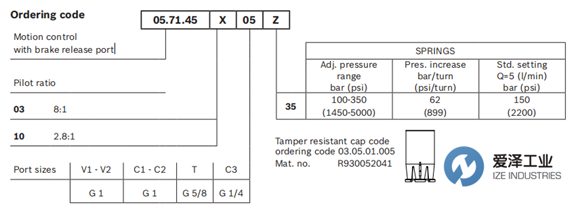

REXROTH OIL CONTROL閥VAA-B-SICN-ST-VF-250系列選型
REXROTH OIL CONTROL閥VAA-B-SICN-ST-VF-250系列其他常用型號：
REXROTH OIL CONTROL 05714503053500C R930006896
REXROTH OIL CONTROL 05714510053500B R930006892
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥05714503053500C R930006896的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
REXROTH OIL CONTROL閥05714503053500C R930006896技術規格
