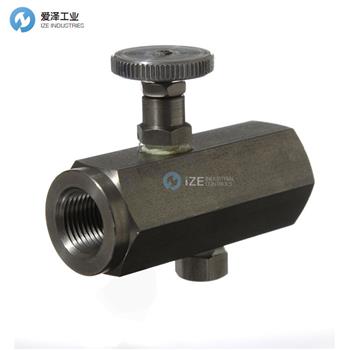

DELTROL限流閥F20SK技術規格
Specifications | |
Max Operating Pressure (psi) | 5000 |
Max Operating Pressure (bar) | 345 |
Max Flow gpm | 3 |
Max Flow lpm | 11.4 |
Max Cracking Pressure psi | 2.5 |
Max Cracking Pressure bar | 0.17 |
Cv Factor | 0.54 |
Port Size | 1/4" |
Port Type | NPTF |
Material | Steel |
Knob | Knurled |
Recommended Operating Tempature Range (°F) | -15 to +400 |
Recommended Operating Tempature Range (°C) | -26 to +204 |
Maximum Operating Pressure (Non-Shock Service) | Brass: 2,000 psi (138 bar) |
Maximum Operating Pressure (Flow Control Poppet) | 60 psi (4 bar) |
Cracking Pressure | 1 to 2.5 psi (.07 to .17 bar) Soft seat check valves if left seated for a period of time, will have the rubber adhere to the metal it is in contact with. This results in an initial high crack point due to sticking. The degree depends on many things (time seated, pressure, etc.). |
Operating Temperature Range | -15° to +400° F (-26° to +204° C) |
Threads | NPTF, BSPT, SAE |
DELTROL限流閥F20SK介紹
描述
可變流量限制器，帶正向關閉和自由反向流動。
由于采用精密螺紋和錐形針，在受控流動方向上可以實現廣泛的流量調節。 帶彈簧的球型止回閥或可選的閥瓣止回閥允許在相反方向上實現完全流動。 調節的意外變化通過鎖緊螺母得到防止。
特點和優勢
廣泛的流量可調性
鎖緊螺母以保持流量設置
正向關閉
標準的密封球型止回閥
可選的帶O形圈的密封閥瓣
Description
A Variable Flow Restrictor with Positive Shut-Off and Free Reverse Flow.
A wide range of flow adjustment in the controlled flow direction is possible because of the fine thread and tapered needle. A spring biased ball check or optional poppet check allows full flow in the opposite direction. Unwanted changes in adjustment are prevented by a lock nut.
Features and Benefits
A wide range of flow adjustability
Lock Nut to maintain flow setting
Positive shut-off
Leak-Tight Ball Check standard
Bubble-Tight Poppet with O-Ring optional
