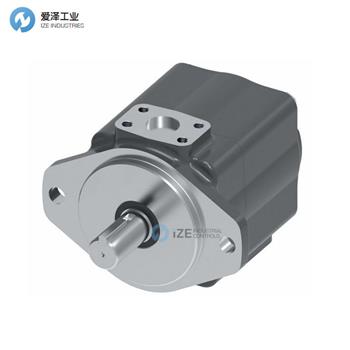

VICKERS液壓泵35V25A-86A22R產品參數
Series designation | 35V - 81 to 121 cm3/r (4.94 to 7.37 in3/r) |
Geometric displacement | 25 |
Port connections | A - SAE 4 bolt flange |
Shaft | 86 - Heavy duty straight keyed |
Outlet positions | A - Opposite inlet port |
Design | 22 |
Rotation | R - Right hand for clockwise |
VICKERS液壓泵35V系列介紹
Vickers單葉片泵V系列 - 低噪音葉片泵20V、25V、35V、45V
特點與優點
體積緊湊，具有高工作壓力能力，提供高功率/重量比，降低安裝成本。
采用內葉片設計，噪音低，提升操作員的工作舒適度。
十二葉系統，減少脈動，降低系統噪聲。
hydraulically平衡，防止內部產生的徑向軸向載荷，延長泵的使用壽命。
雙泵和穿軸驅動結構節省空間和成本，避免需雙軸延長電機或減少電機數量和傳動聯軸器。
穿軸型號提供設計靈活性，可在單一輸入驅動上實現固定和可變排量。
擁有十六種流量排量和高工作壓力能力，滿足各種流量和壓力需求，支持單一來源。
工廠測試的筒夾組件確保安裝即能達到新泵性能。
筒夾設計便于現場快速維修，獨立于驅動軸，便于更換流量配比和維護，無需拆除泵體。
入口和出口端口可以相對定位在四種不同位置，增強安裝靈活性，方便設備設計。
Vickers Single Vane Pumps V Series - Low Noise Vane Pumps 20V, 25V, 35V, 45V
Features and Benefits
? High operating pressure capabilities in compact packages provide high power to weight ratios and lower installed costs.
? Low noise characteristics inherent in intravane design enhance operator comfort.
? Twelve vane system provides low amplitude flow pulsations resulting in low system noise characteristics.
? Hydraulic balancing, designed to prevent internally-induced radial shaft and bearing loads, provides long life.
? Double pumps and thru-drive arrangements save installation space and cost by eliminating double shaft extension electric motors or by reducing the number of motors and drive couplings.
? Thru-drive models provide valuable circuit design flexibility, such as having fixed and variable displacement models on a single input drive.
? Sixteen flow displacements and high operating pressure capabilities provide optimum selection and single-source capability for your complete range of flow and pressure requirements.
? Factory tested cartridge kits provide new pump performance upon installation.
? The cartridge kit design offers fast and efficient field serviceability. The cartridge is independent of the drive shaft, allowing for easy change of flow capacity and servicing without removing the pump from its mounting.
? Inlet and outlet ports can be oriented in four different positions relative to each other, providing greater installation
flexibility and ease of machine design.
VICKERS液壓泵35V系列其他常見型號：
VICKERS 35V25A-86A22R
VICKERS 35V25A-11A22L
VICKERS 35V25A-11A22R
VICKERS 35V25A-11B22R
VICKERS 35V25A-11C22L
VICKERS 35V25A-11C22R
VICKERS 35V25A-11D22R
VICKERS 35V25A-1A22L
VICKERS 35V25A-1A22R
VICKERS 35V25A-1B22L
VICKERS 35V25A-1B22R
VICKERS 35V25A-1C22L
VICKERS 35V25A-1C22R
VICKERS 35V25A-1D22L
VICKERS 35V25A-1D22R
VICKERS 35V25A-86A22L
VICKERS 35V25A-86A22R
VICKERS 35V25A-86B22R
VICKERS 35V25A-86C22L
VICKERS 35V25A-86C22R
VICKERS PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS液壓泵35V25A-86A22R的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
