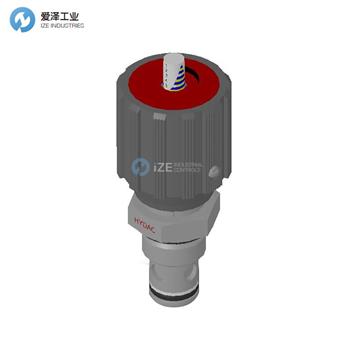

FLUTEC節流閥DVE10920-01-C-V技術描述
Technical data | |
Cavity | 10920 |
Part number | 705430 |
Design | Cartridge |
Sealing material | FKM |
Type of installation | Metric |
Control type | Direct-acting |
Qmax valves [l/min] | 80 |
Pmax [bar] | 350 |
Object designation | DVE10920-01-C-V |
Nom. size | 10 |
Function | Poppet valve |
Product family | DVE10 |
Function | Drosselventil |
Adjustment type | Manual |
Flow rate range [l/min] | 0 - 80 |
Q product family [l/min] | 0 - 80 |
FLUTEC節流閥DVE系列產品介紹
The DVE is a flow control valve which controls the flow rate by adjusting the cross section. It is available in four sizes. The flow rate is dependent on the pressure differential and the viscosity. Starting with the throttle spindle in the fully closed position, the flow rate increases in accordance with the appropriate curve as the control knob is turned. The flow is controlled in both directions. The scale and coloured rings on the top of the control knob enable accurate repeat setting.
DVE是一種流量控制閥，通過調節截面積來控制流量。有四種尺寸可選。流速取決于壓力差和粘度。從節氣門主軸處于完全關閉位置開始，隨著控制旋鈕的轉動，流量按照適當?shù)那€增加。流量是雙向控制的?？刂菩o頂部的刻度和彩色環可實現準確的重復設置。
FLUTEC節流閥DVE系列其他常用型號：
HYADC DVE08920-01-C-V 705426
HYADC DVE10920-01-C-V 705430
HYADC DVE12920-01-C-V 705434
HYADC DVE16920-01-C-V 705438
FLUTEC Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLUTEC節流閥DVE10920-01-C-V的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FLUTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
FLUTEC節流閥DVE10920-01-C-V介紹
