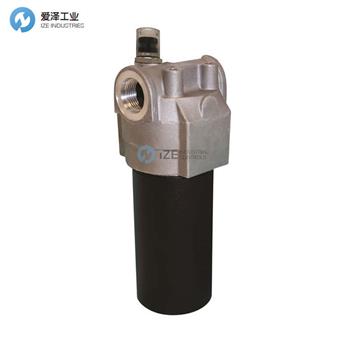

SCHROEDER過濾器SRLT6RZ25S12技術參數
Specifications | |
Type | Medium Pressure Filter |
Style | Top Ported |
Flow | 25 gpm, 95 L/min |
Seal Material | Buna |
Medium | Petroleum Based Fluids: E media and Z-Media?; High Water Content: Z-Media?; Water Glycols: Z-Media?; Phosphate Esters: Z-Media? with EPR and 3 and 10 μ E media with H EPR; Skydrol: Z-Media? with H.5 seal designation and W media with H.5 seal designation. |
Weight | 1.36 kg, 3.00 lb |
Size | 6R |
Material | Excellement? Z-Media? (Synthetic) |
Class | 25 |
Mounting Type | Top Ported |
Inlet/Outlet Port Type | SAE |
Port Size | SAE-12 |
Operating Temperature [Min] | -29 oC, -20 oF |
Operating Temperature [Max] | 107 oC, 225 oF |
Head Material | Porting Head: Aluminum |
Cracking Pressure | 2.8 bar, 40 psi |
Filter Rating | 25 μm |
Designation | Single |
Operating Pressure [Max] | 100 bar, 1450 psi |
Connection Gender | SAE-12 |
Bowl Material | Element Case: Aluminum |
Fatigue Pressure | 52 bar, 750 psi |
Short Description | Top-Ported Medium Pressure Return Line Filters |
SCHROEDER過濾器SRLT6RZ25S12產品介紹
RLT 的更小、緊湊版本
快速、輕松地更換濾芯濾芯
提供管道、SAE 直螺紋和 ISO 228 端口
提供 NPTF 入口和出口母測試端口
各種 Dirt Alarm 選項
Smaller, compact version of the RLT
Quick and easy cartridge element change outs
Offered in pipe, SAE straight thread and ISO 228 porting
Available with NPTF inlet and outlet female test ports
Various Dirt Alarm options
SCHROEDER過濾器SRLT系列其他常用型號：
SCHROEDER SRLT6R10HS12XD5
SCHROEDER SRLT6R10P12D5
SCHROEDER SRLT6R10P12MS5
SCHROEDER SRLT6R10S12
SCHROEDER SRLT6R10S12D5
SCHROEDER SRLT6R10S12MS5
SCHROEDER SRLT6R25P12L
SCHROEDER SRLT6RM100S12
SCHROEDER SRLT6RZ25S12
